Zenmuse P1

Efficiency through Flexible Full-frame Photogrammetry

The New Benchmark for Aerial Surveying
The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

High Efficiency
3 Km covered in a single flight

3-axis Stabilization Gimbal
Smart Oblique Capture

TimeSync 2.0 – synchronization
at the microsecond level

Accuracy without GCPs
3 cm horizontally / 5 cm vertically

45 MP Full-frame Sensor

Global Mechyanical Shutter
Shutter Speed 1/2000 Seconds

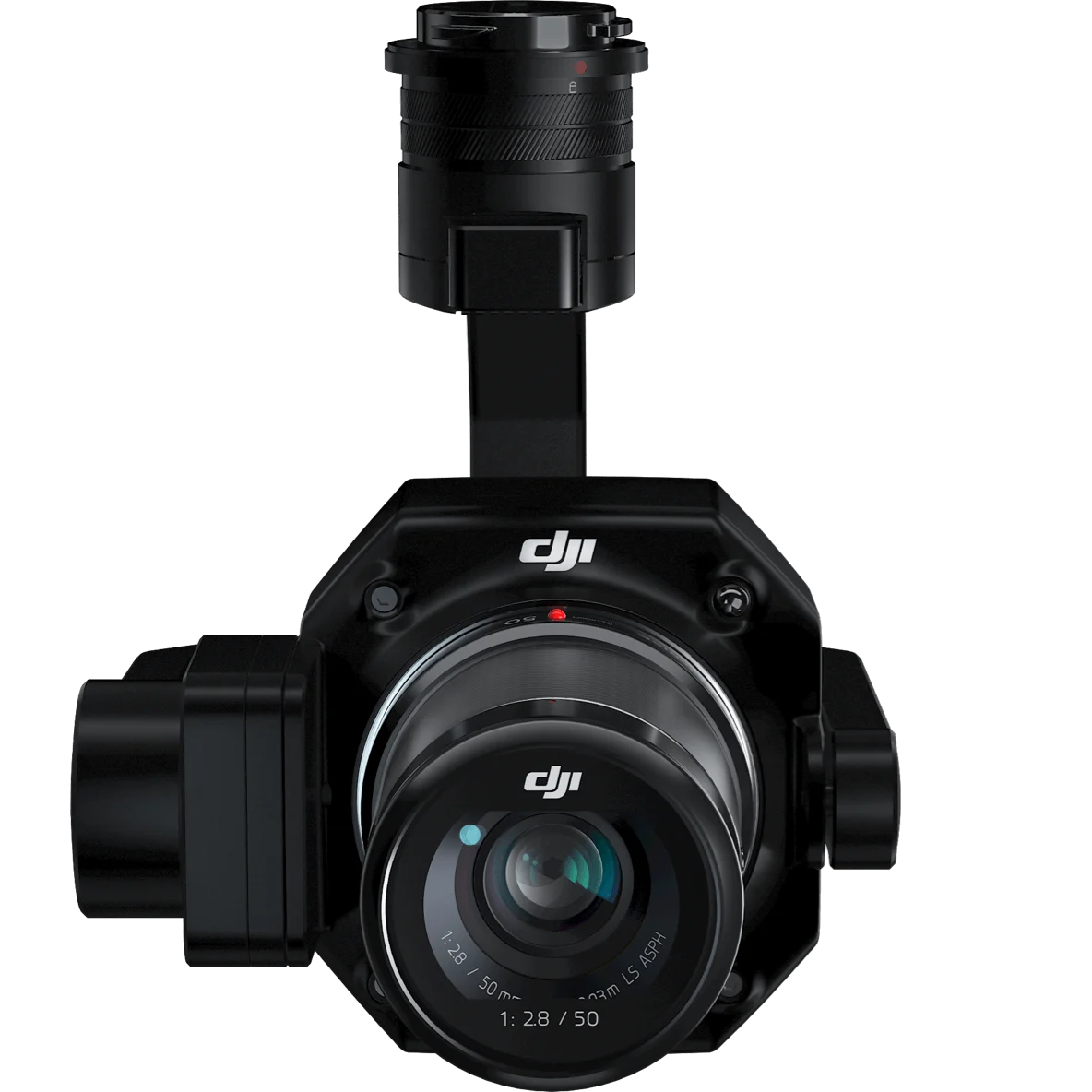

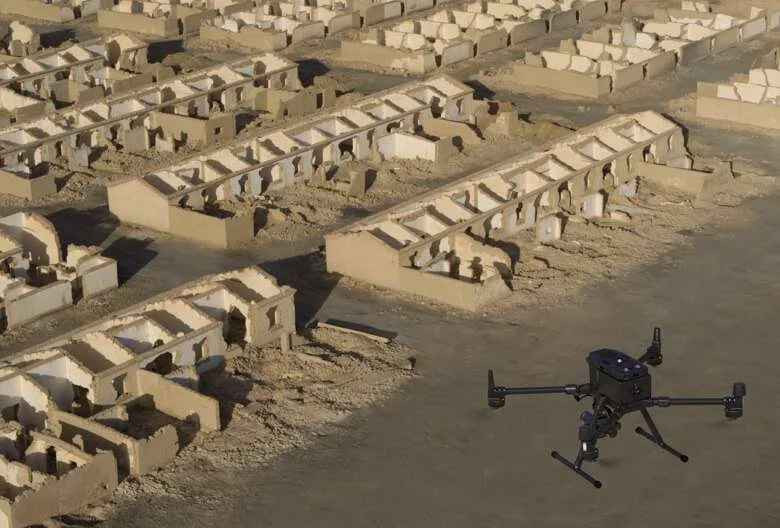

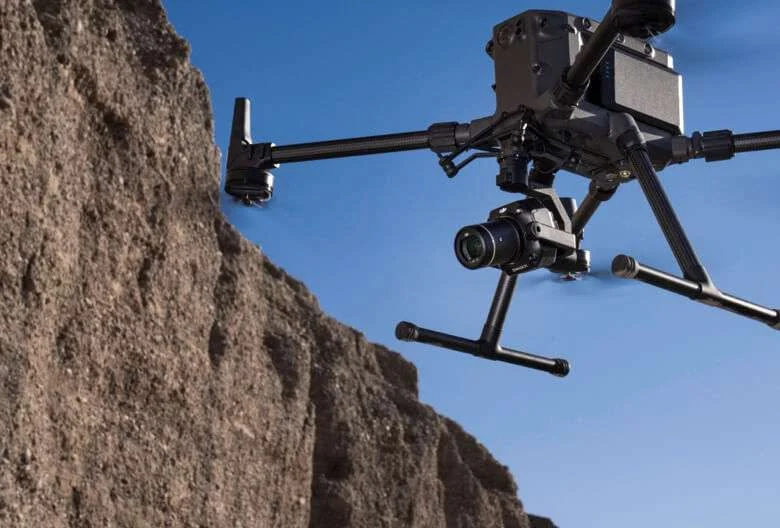

Your Go-to Tool for Aerial Photogrammetry

Remarkable Accuracy
Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with the real-time position and orientation compensation technology.

Extraordinary Efficiency
The P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km2 [2] in a single flight.

Robust Versatility
Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.

Efficiency to Cover It All

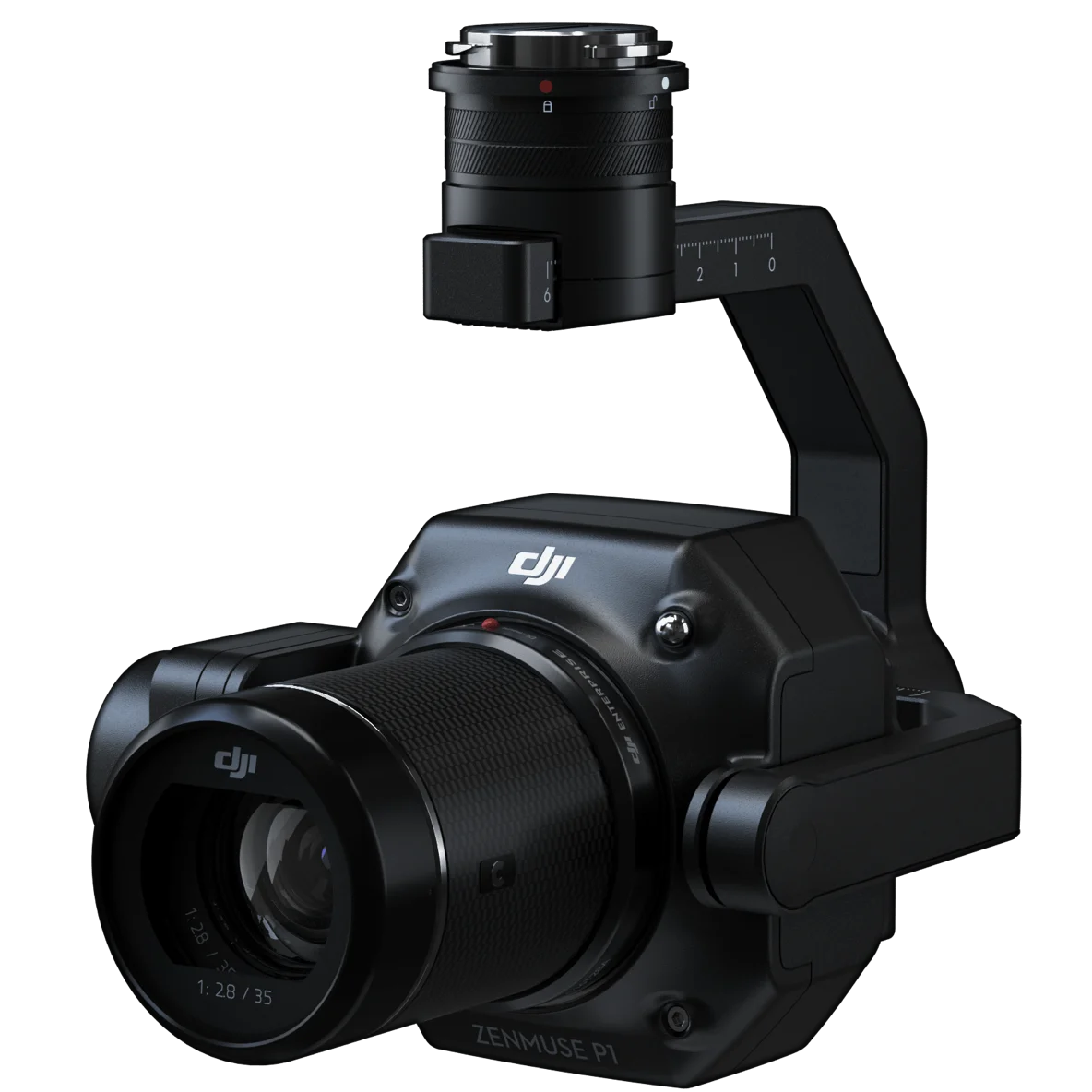

Full-frame Camera
– 45MP Full-frame Sensor
– 4.4μm Pixel Size
– Low-noise, high sensitivity imaging extends daily operational time
– Take a photo every 0.7 s during the flight
– TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level

Flexibility to Capture It All
Multiple Fixed-focus Lens Options
-Global Mechanical Shutter with a shutter speed of 1/2000 Seconds
-Sends the median exposure pulse in microseconds
-Supports 24/35/50mm lenses with DJI DL mounts

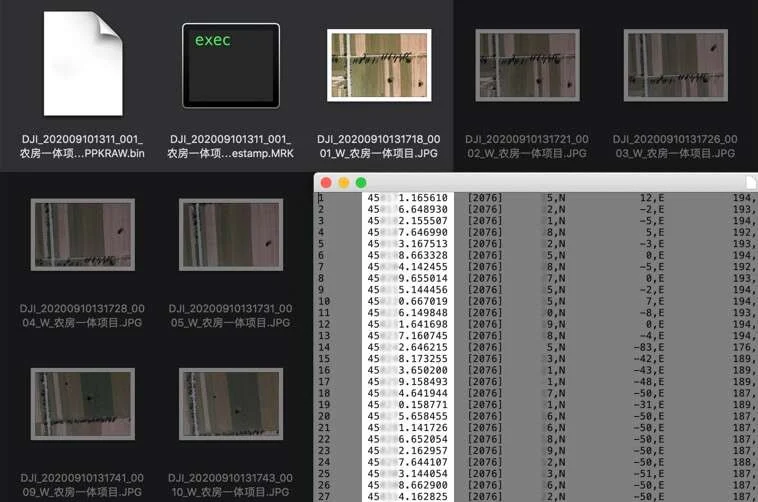

Smart Data Management

Your mission Data Management – streamlined.

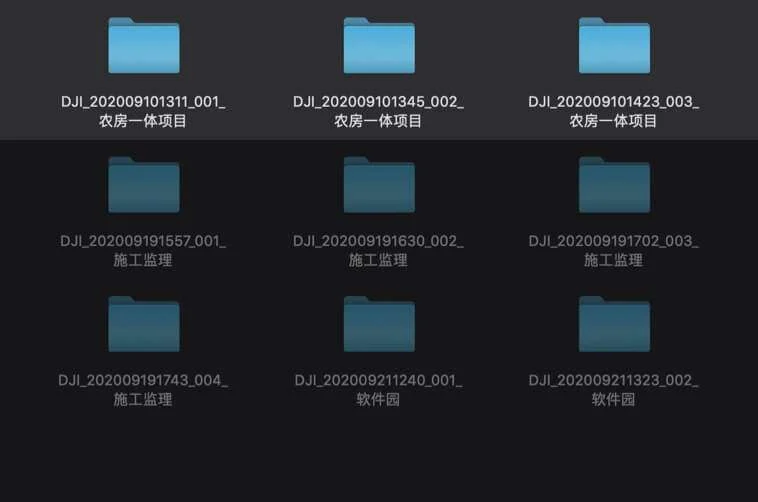

Mission result files are automatically associated with the Mission Name and Mission Time.

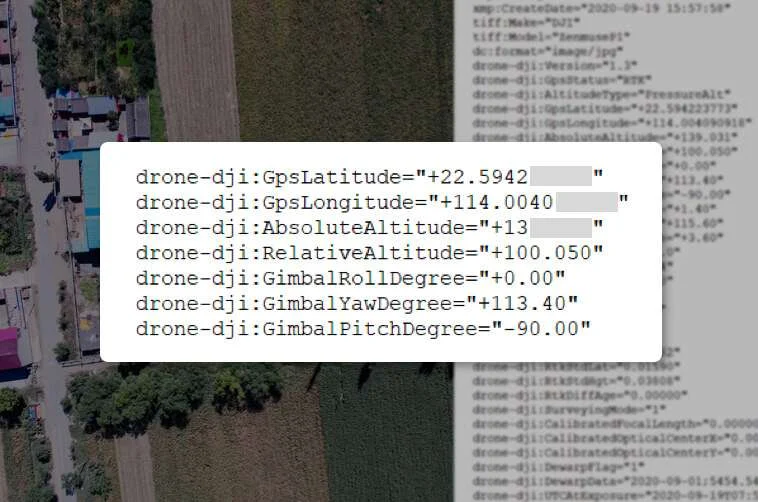

The image metadata contains the camera’s intrinsic and extrinsic parameters and the status of RTK.

A centralized storage location for photos, GNSS data, and TimeStamps.MRK files.

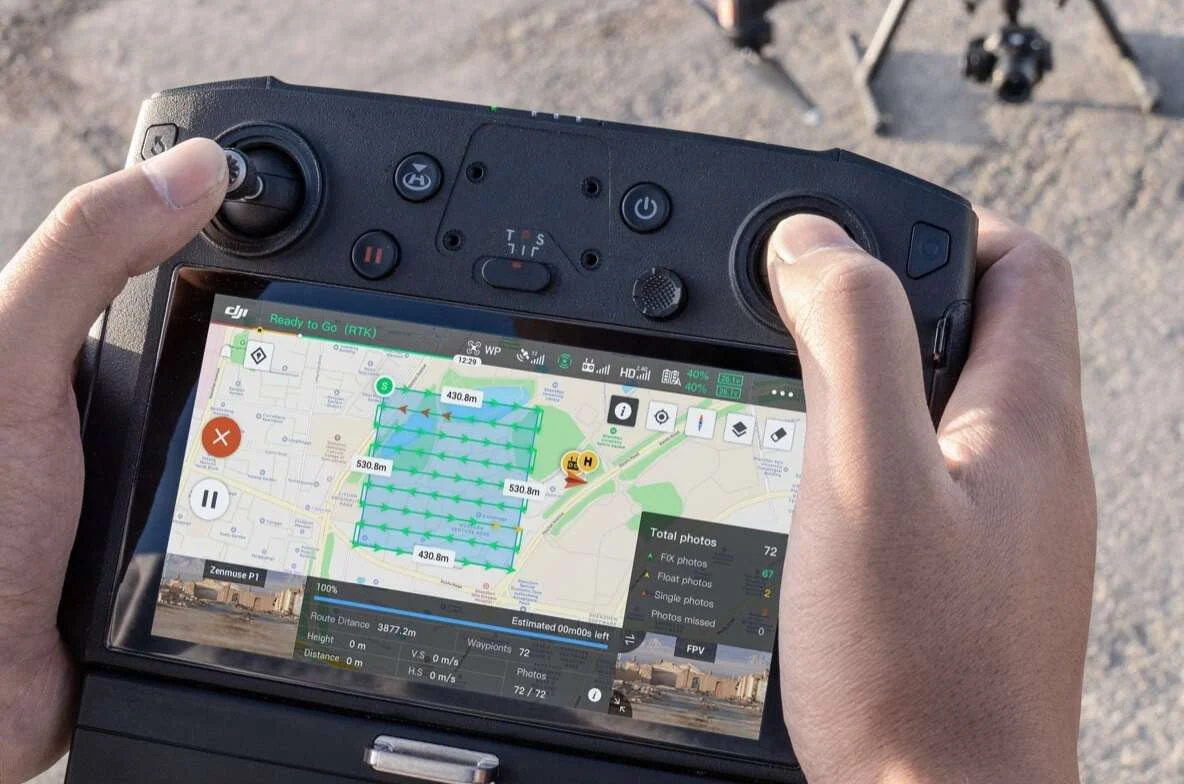

Fieldwork Report

Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.

Smart Oblique Capture

Cover 7.5 km2 in a single workday with the P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed.

Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post processing by 20% to 50%.

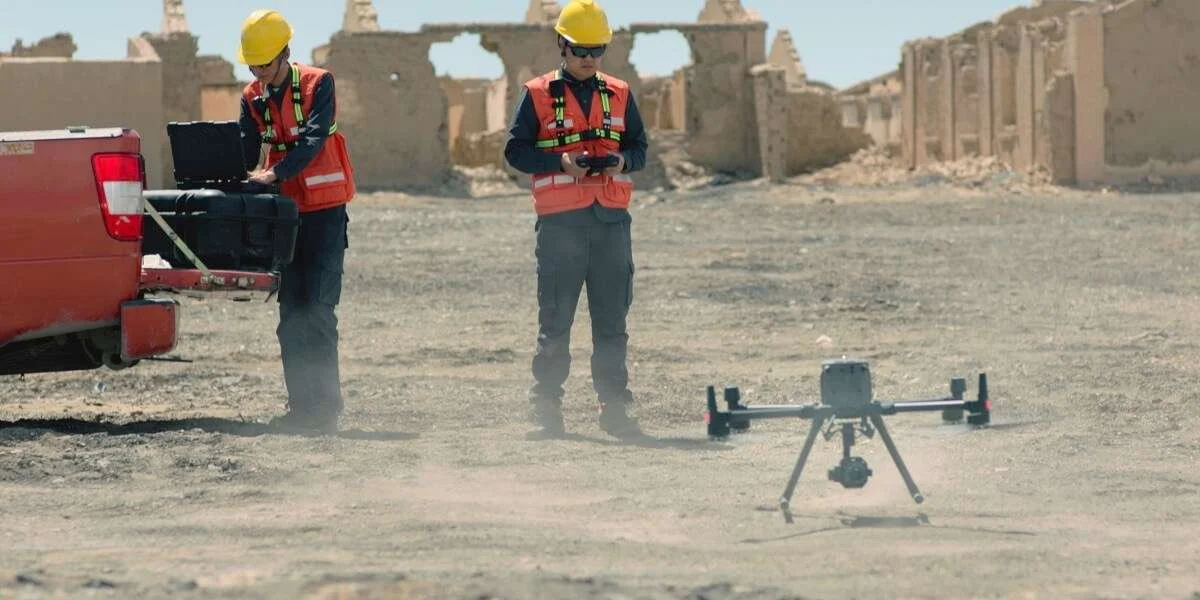

Application Scenarios

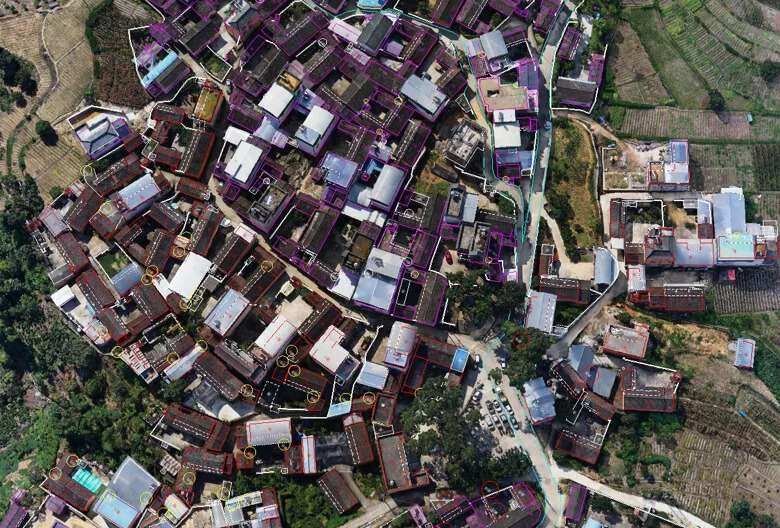

Cadastral Surveying
Quickly generate centimeter-level accurate 3D reality models.

Natural Resource Management
Measur, classify, or determine the ownership of water bodies and forests.

Disaster Site Modeling
Gain real-time overviews of vast disaster-struck areas to help teams make critical decisions.

Topographice Mapping
Capture data that meet the 1:500 Scale Accuracy requirements without GCPs

AEC and Surveying
Manage the full project lifecycle with 2D and #D drone data.

Geological Investigation
Safely gather millimeter-level accurate aerial data of geological hazard sites

DJI Agras Intelligent Cloud

By pairing AGRAS T40 with the Phantom 4 Multispectral, the platform allows you to perform variable spraying/spreading operations with precision based on the farmland’s prescription map. The feature is useful for the spraying of fertilizers on rice, fertilizers and defoliants on cotton crops, and nutrient solutions on soybeans and corn.

A Mission Mode for Any Scenario

2D Orthomosaic Mission
3D Oblique Mission
Detailed Modeling Mission
Real-time Mapping Mission
