Zenmuse H20 Series
Unleash The Power of One
“H” For Hybrid
Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

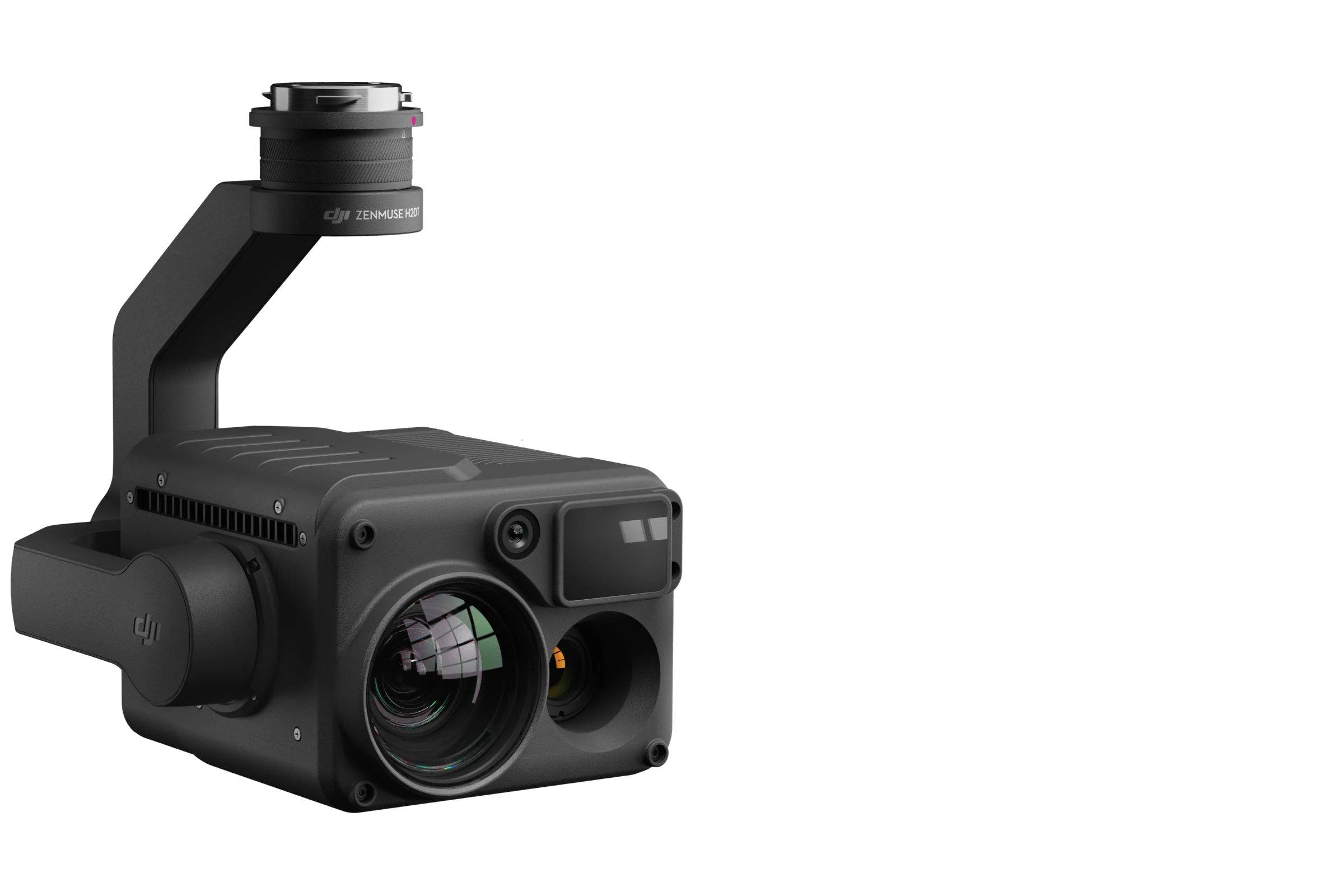

All The Sensors You Need - In One
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away.
A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.
H20 – Triple-Sensor Solution
12 MP Widfe Camera
20MP Zoom Camera
1200 m LEF
H20T – Quad-Sensor Solution
20 MP Zoom Camera
12 MP Wide Camera
1200 m LRF
640×512 px Radiometric Thermal Camera

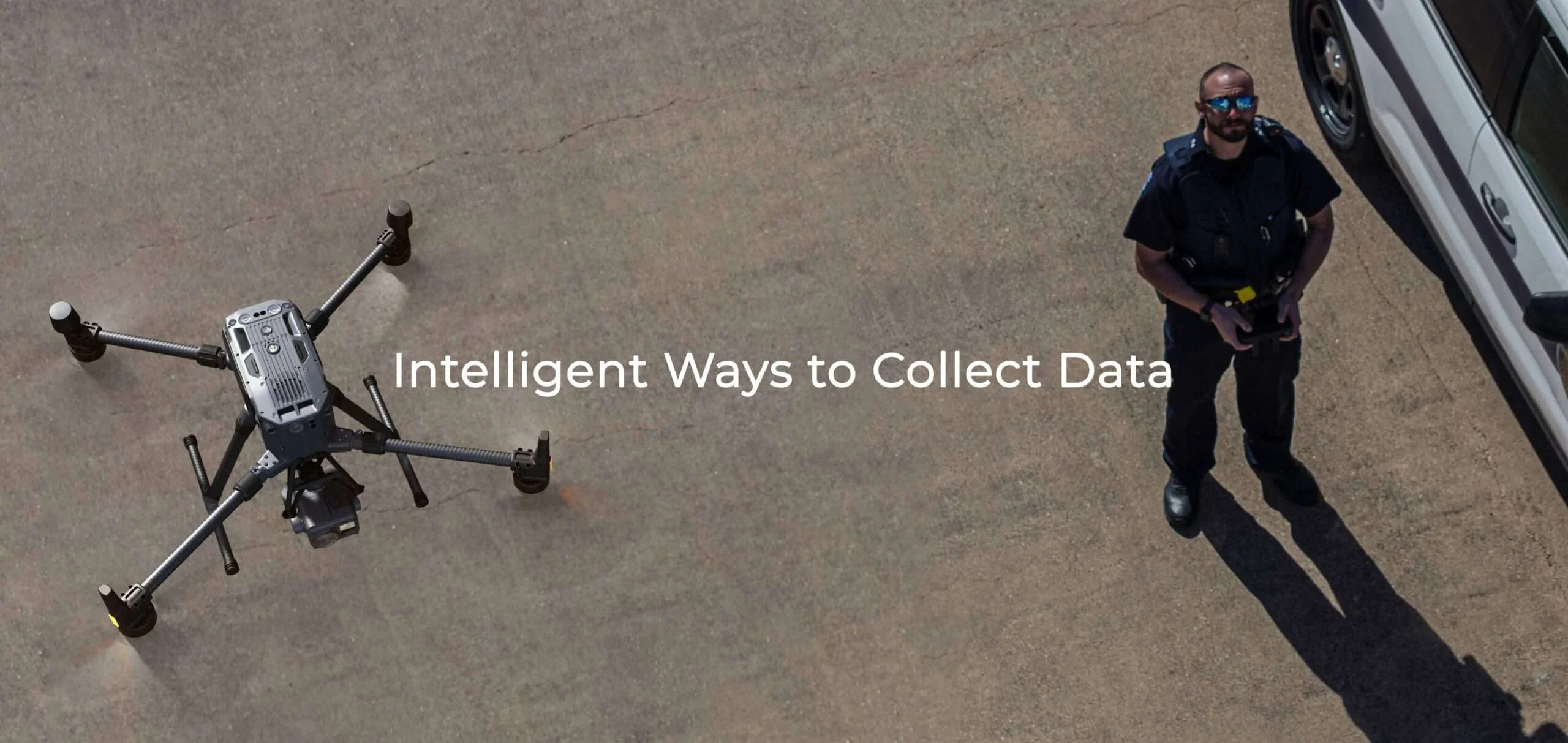

Multi-Sensor Payloads
See the full picture without missing any details wherever and whenever you mission takes place.
Zoom

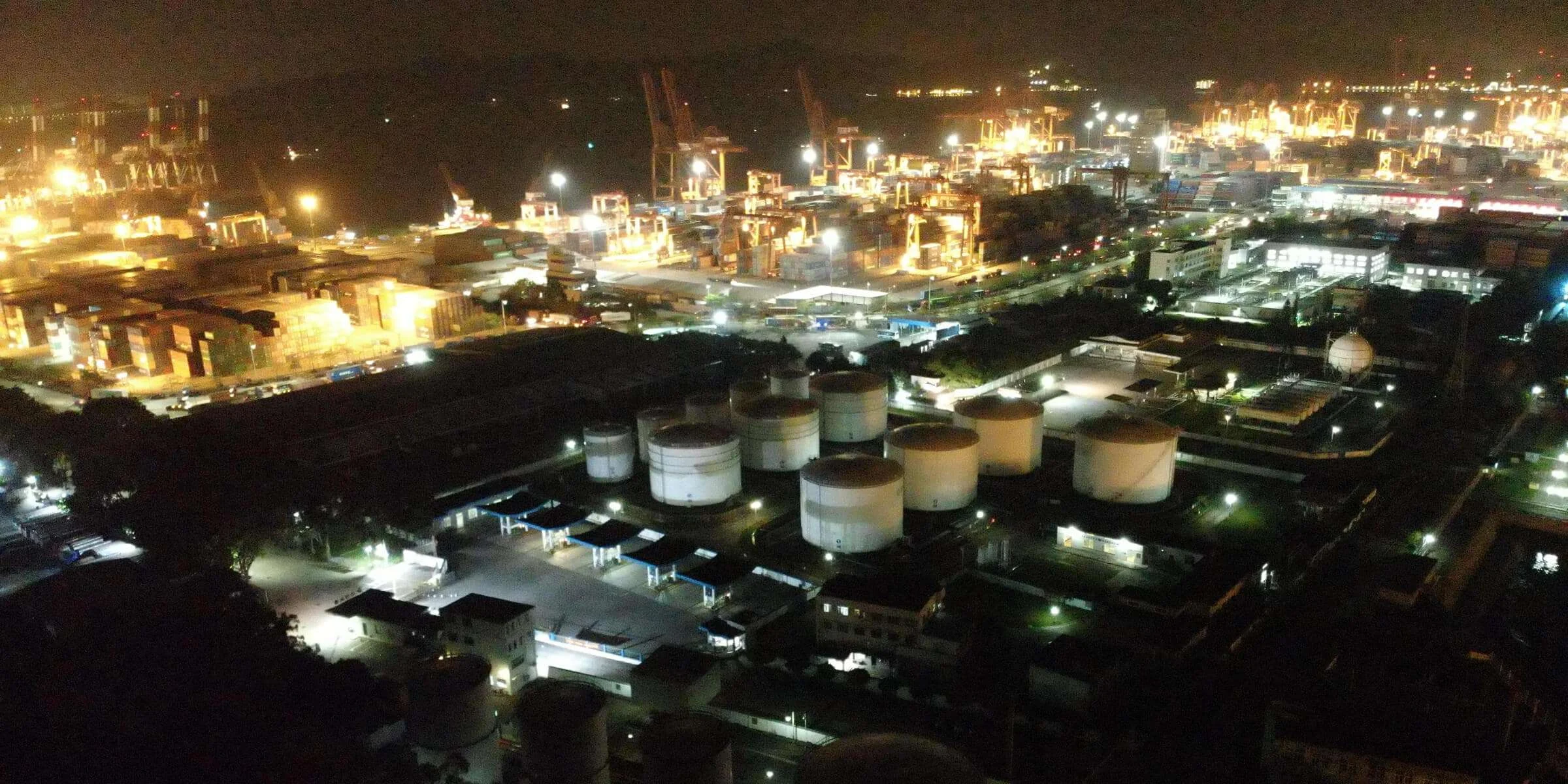

Night
Wide

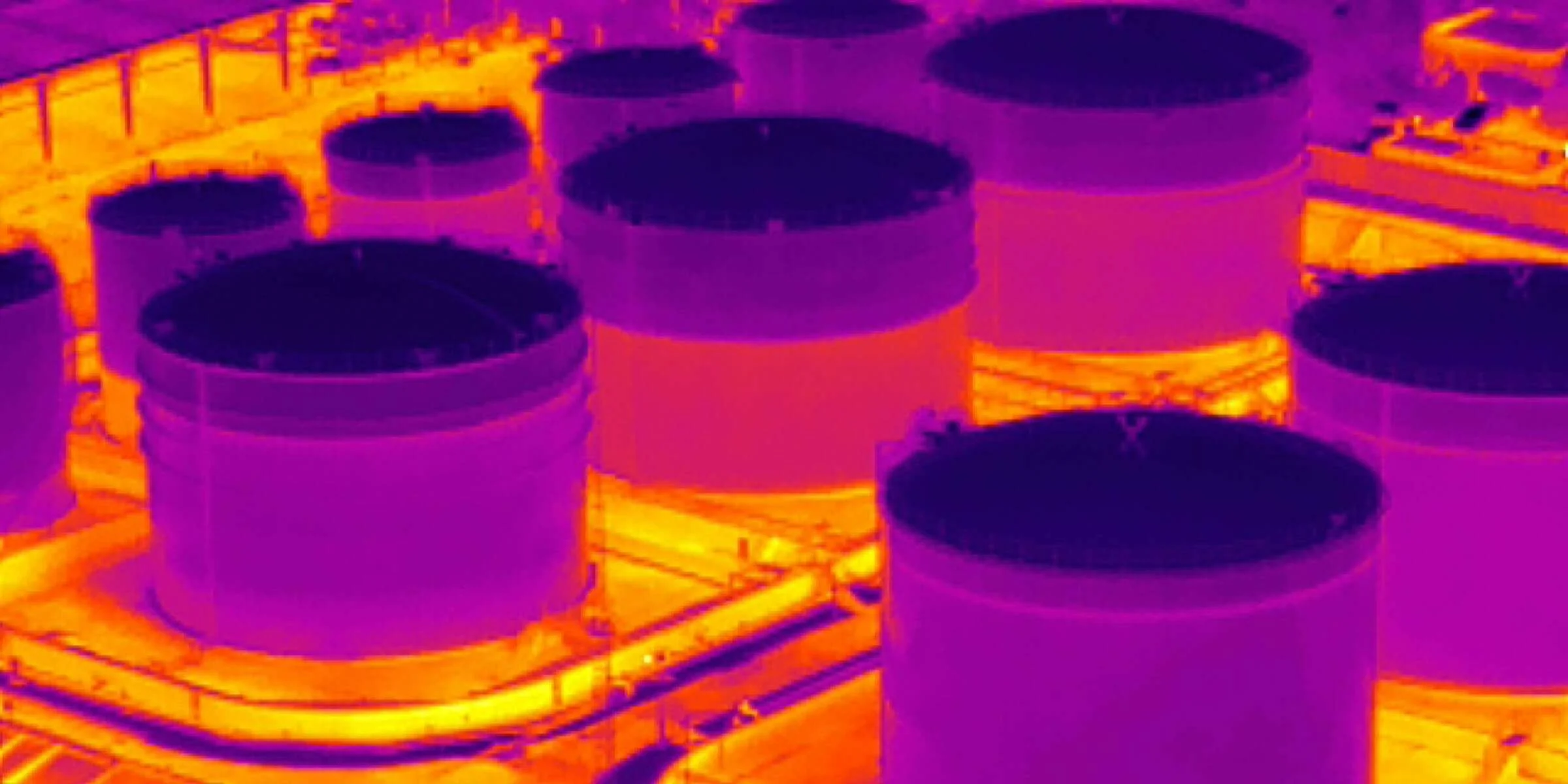

Thermal
12 MP Wide Cemera 82.9° DFOV
Radiometric Thermal Camera 640×512 px
IP44 Rating
Active Image Stabilization and EIS
20 MP Zoom Camera 23x Hybrid Optical Zoom
Laser RangeFinder 1200 m Max Range
-20°C to 50°C Operating Temperature

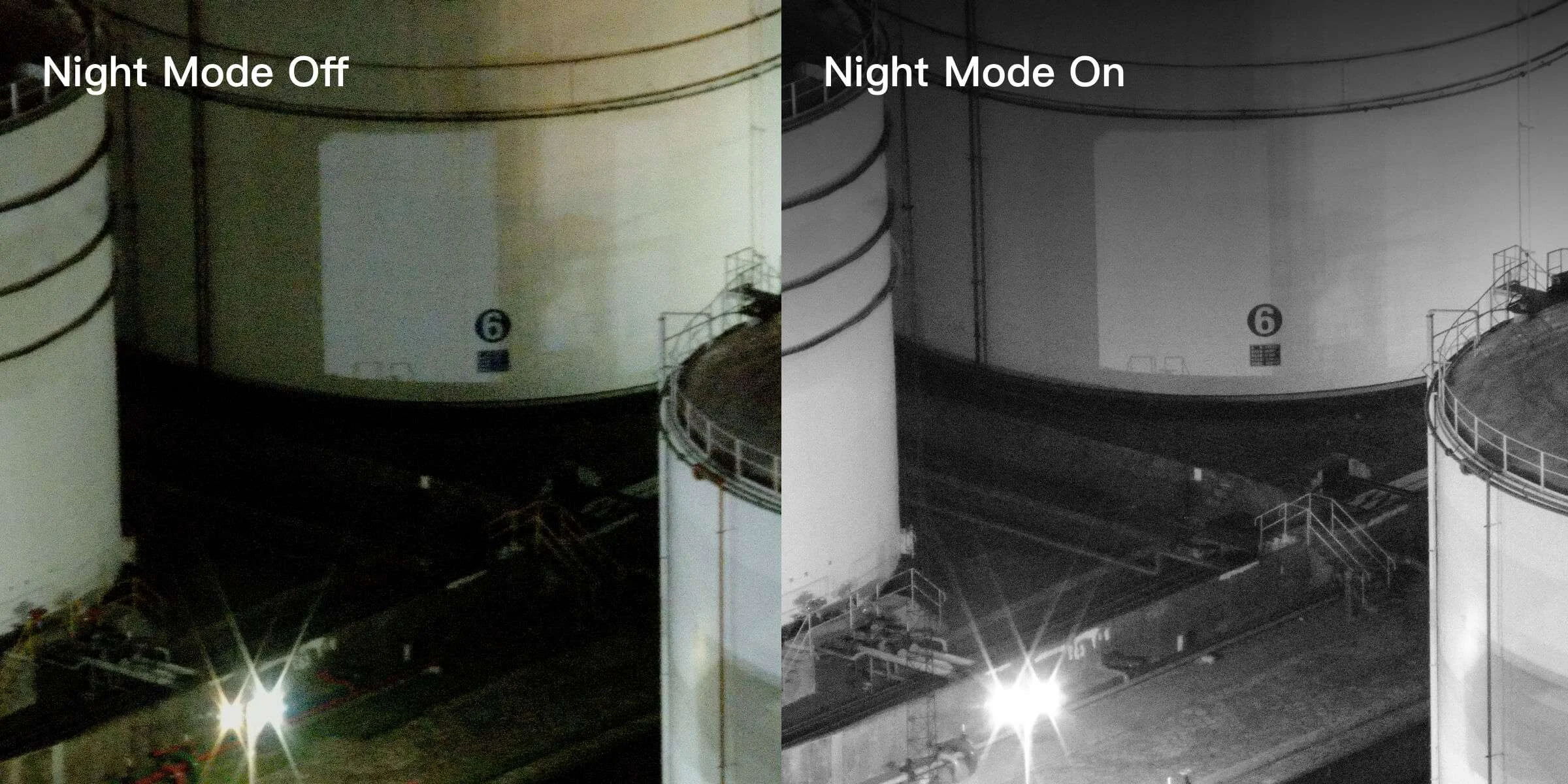

Night Scene Mode
AI Spot-Check
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
PinPoint
A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.
Smart Track
Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
Visulize Temperatures Immediately
Accurate Temperature Measurement
Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.
Spot Meter
Tap a point to get a real-time reading of the surface temperature.
Area Measurement
Select an area to view the lowest, highest, and average temperatures.

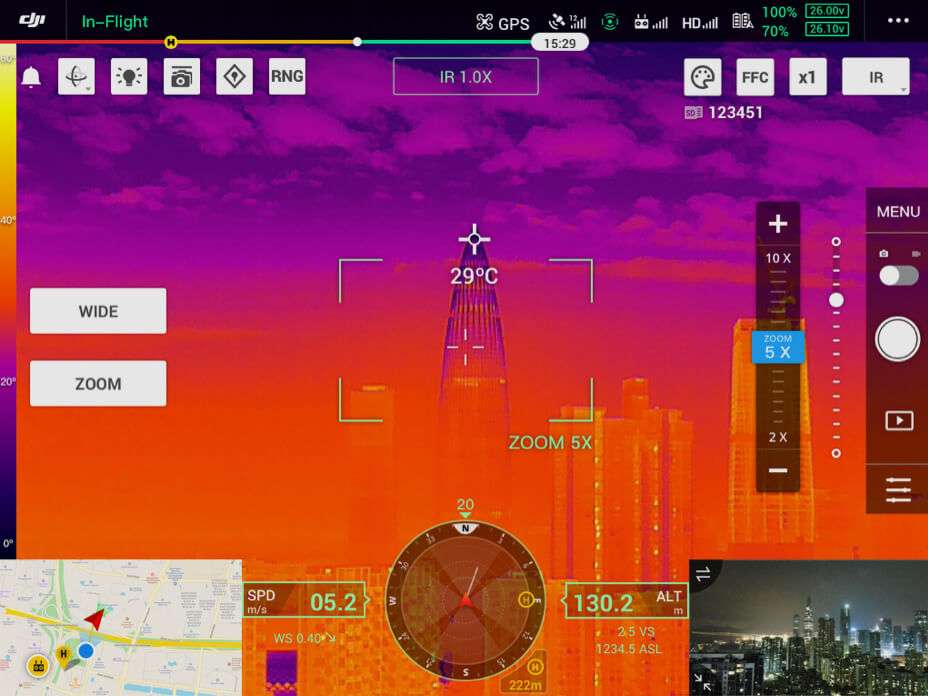

Seamless User Interface
A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.
Intelligent Features
Color Palettes
Adjust the colors applied to the thermal data based on the needs of specific scenarios.
R-JPEG Images
Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
Temp Alarm
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Isotherms
Visualize a specific band of temperatures to find what is important.
Gain Modes
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
Intelligent Features
Search & Rescue
Act quick to locate missing people and better plan rescue missions.

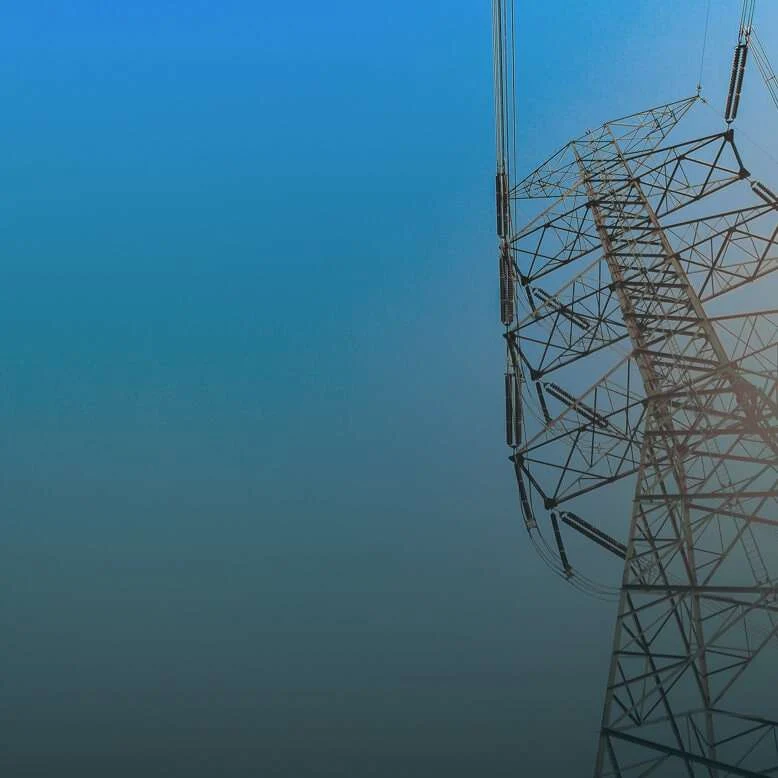

Powerline Inspection
Easily visualize extensive power line networks in remote areas.
Firefighting
Fight Fires and save lives without endangering personnel.
Law Enforcement
Quickly assess a situation and plan accordingly while improving officer and bystander safety.

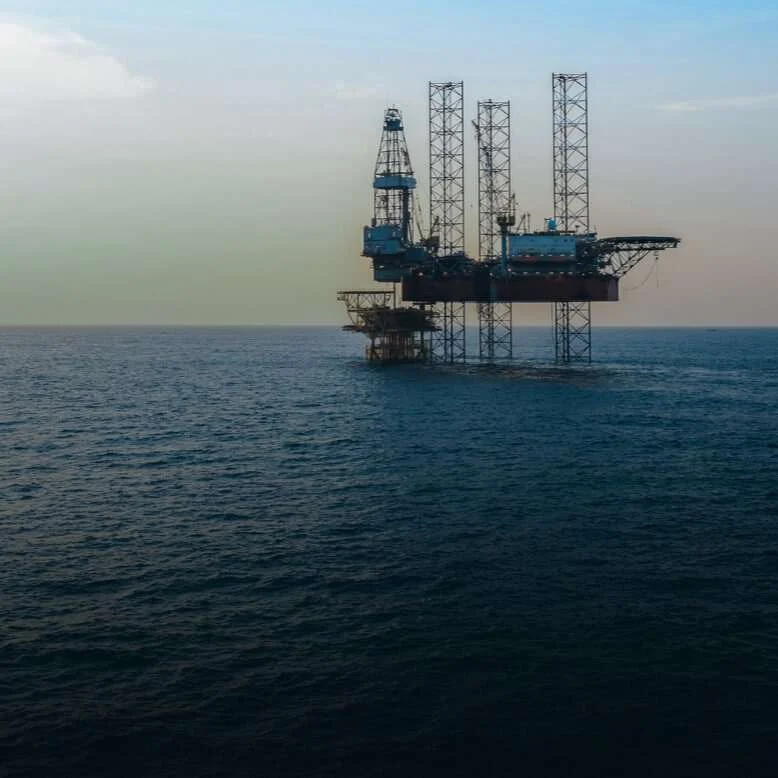

Oil and Gas
Conduct inspections of pipelines, well sites, and more while keeping workers away from risky areas.
Zenmuse H20 Series
Unleash the Power of One
