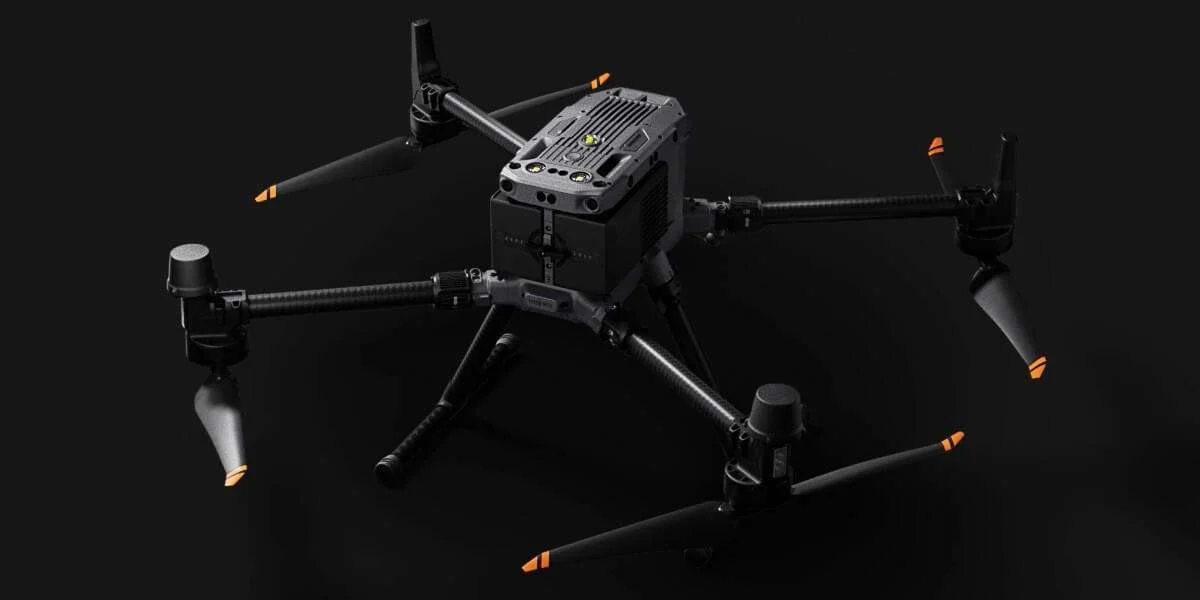

DJI Matrice 350 RTK
Enterprise Drone
Fully Powered to Forge Ahead
Built for demanding field work, the Matrice 350 RTK combines RTK positioning, long flight endurance, DJI O3 Enterprise transmission, six-directional sensing, and the DJI RC Plus controller in one adaptable platform.
Up to 55 min
Maximum flight time
400 Battery Cycles
Rated battery life
IP55
Protection rating
6-Directional
Sensing and Positioning
DJI O3 Enterprise Transmission
Long-Range HD Video Transmission
Night-Vision FPV Camera
Low-Light Flight Awareness
DJI RC Plus
Enterprise Remote Controller
Multi-Payload Support
Up to Three Payloads
DJI Matrice 350 RTK Flight Performance
The Matrice 350 RTK is designed for enterprise operations that require flight endurance, payload capacity, and reliable performance across changing field conditions. Its IP55-rated airframe operates in temperatures from -20°C to 50°C and supports payloads up to 2.7 kg.
*DJI’s maximum flight-time figure is measured without a payload under specified test conditions. Actual flight time varies with payload, accessories, flight conditions, and operating environment.
**DJI specifies the 7,000 m maximum takeoff altitude when using 2112 High-Altitude Low-Noise Propellers and within the stated takeoff-weight limit.

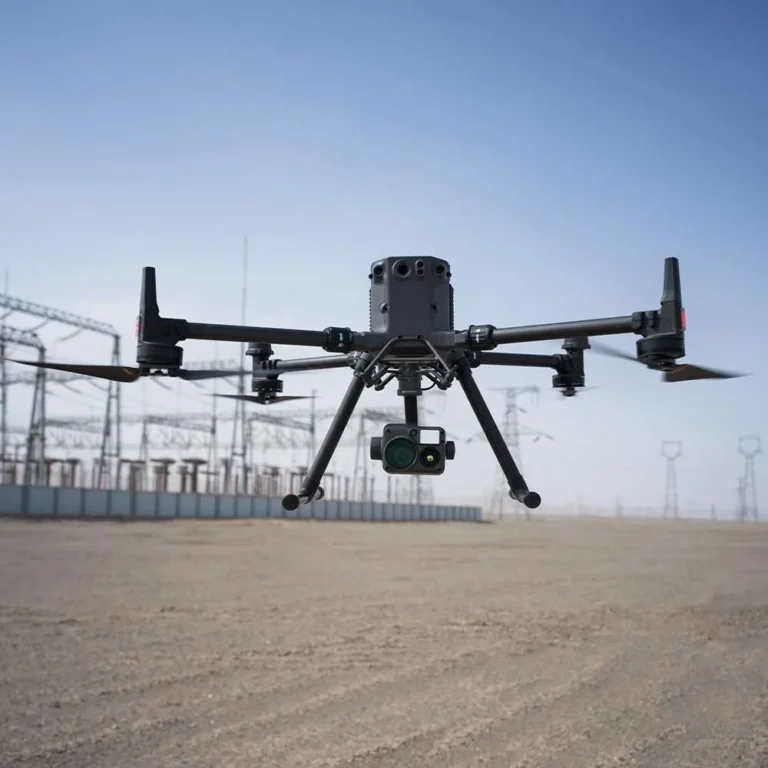

DJI O3 Enterprise Transmission
DJI O3 Enterprise Transmission supports triple-channel 1080p HD live feeds and transmission distances up to 20 km under specified FCC test conditions. Actual transmission range varies with regional regulations, interference, obstructions, and the operating environment.
Both the Matrice 350 RTK and DJI RC Plus use four-antenna transceiver systems. The system selects the two strongest antennas for transmission while all four continue receiving signals, helping maintain a stable connection and reduce interference during enterprise operations.
DJI RC Plus and Pilot 2
New Control Experience

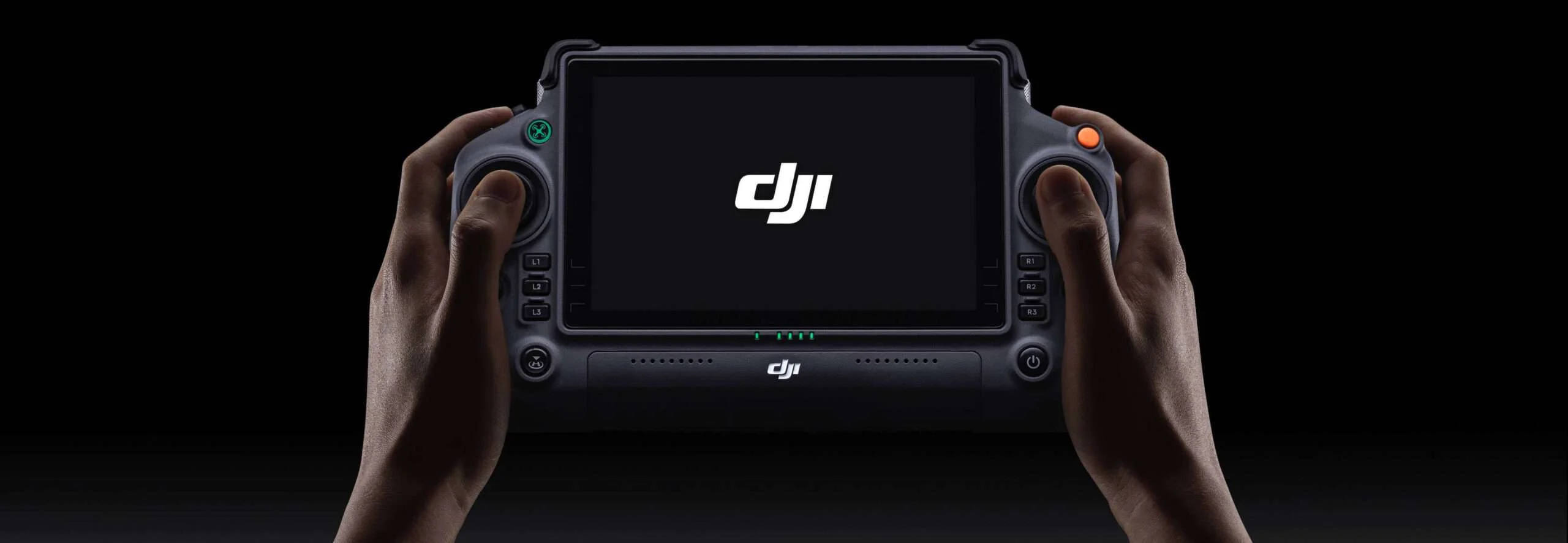

DJI RC Plus
The DJI RC Plus gives operators a 7-inch high-brightness display for viewing flight, payload, and mission information in the field. It supports Dual Operator Mode and includes a WB37 external battery, providing up to six hours of operating time.
Built for Field Conditions
With an IP54 rating and an operating temperature range of -20°C to 50°C, DJI RC Plus is designed for use across changing weather and field conditions.
Customisable Controls
Buttons and dials across the controller provide quick access to commonly used functions during flight. Controls can be customised around different operators, payloads, and mission requirements.

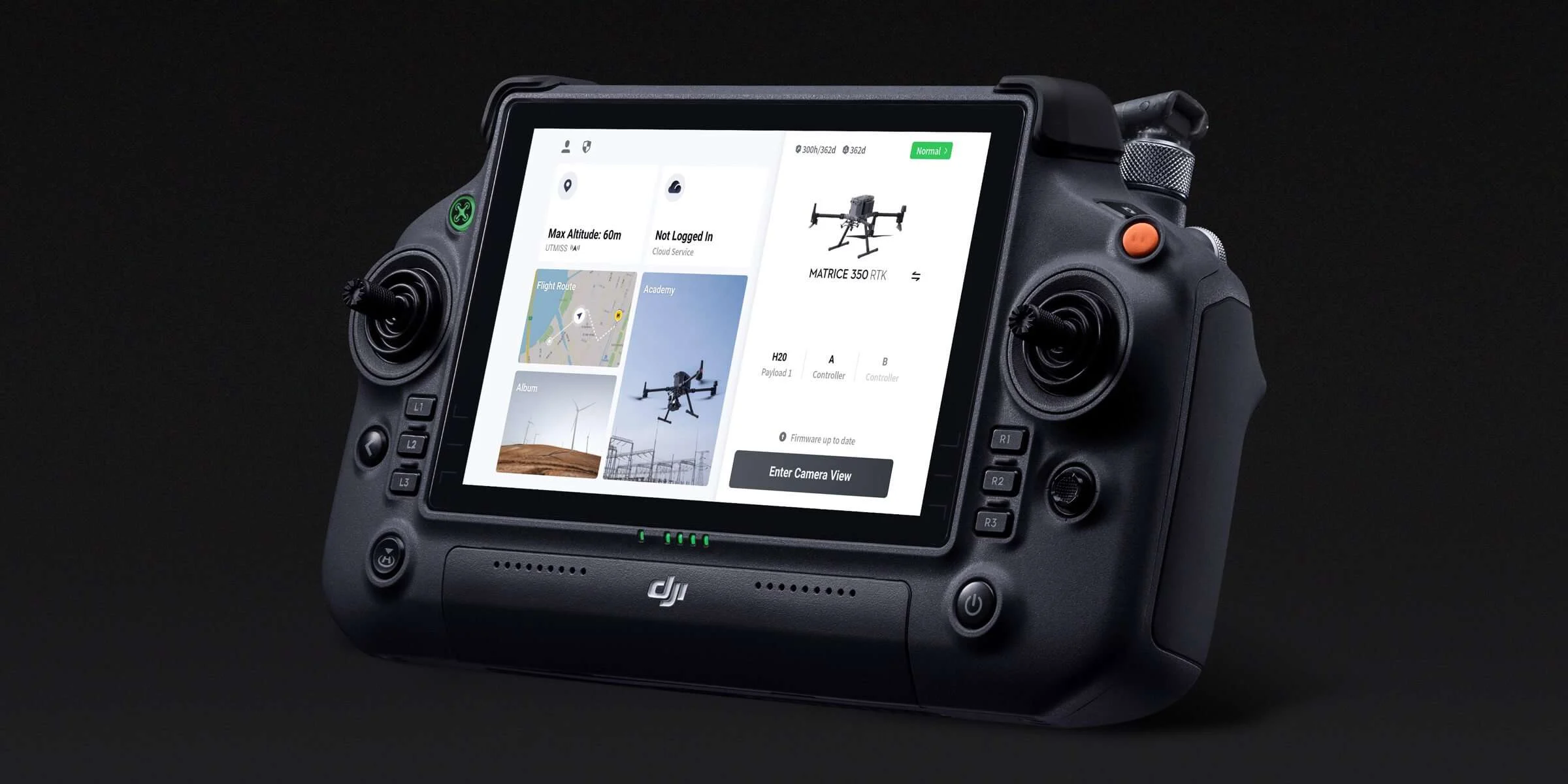

DJI Pilot 2
DJI Pilot 2 brings aircraft status, payload controls, flight information, and mission details into one interface. This gives operators a central place to manage the Matrice 350 RTK and its connected payloads during enterprise operations.
DJI Matrice 350 RTK TB65 Battery System

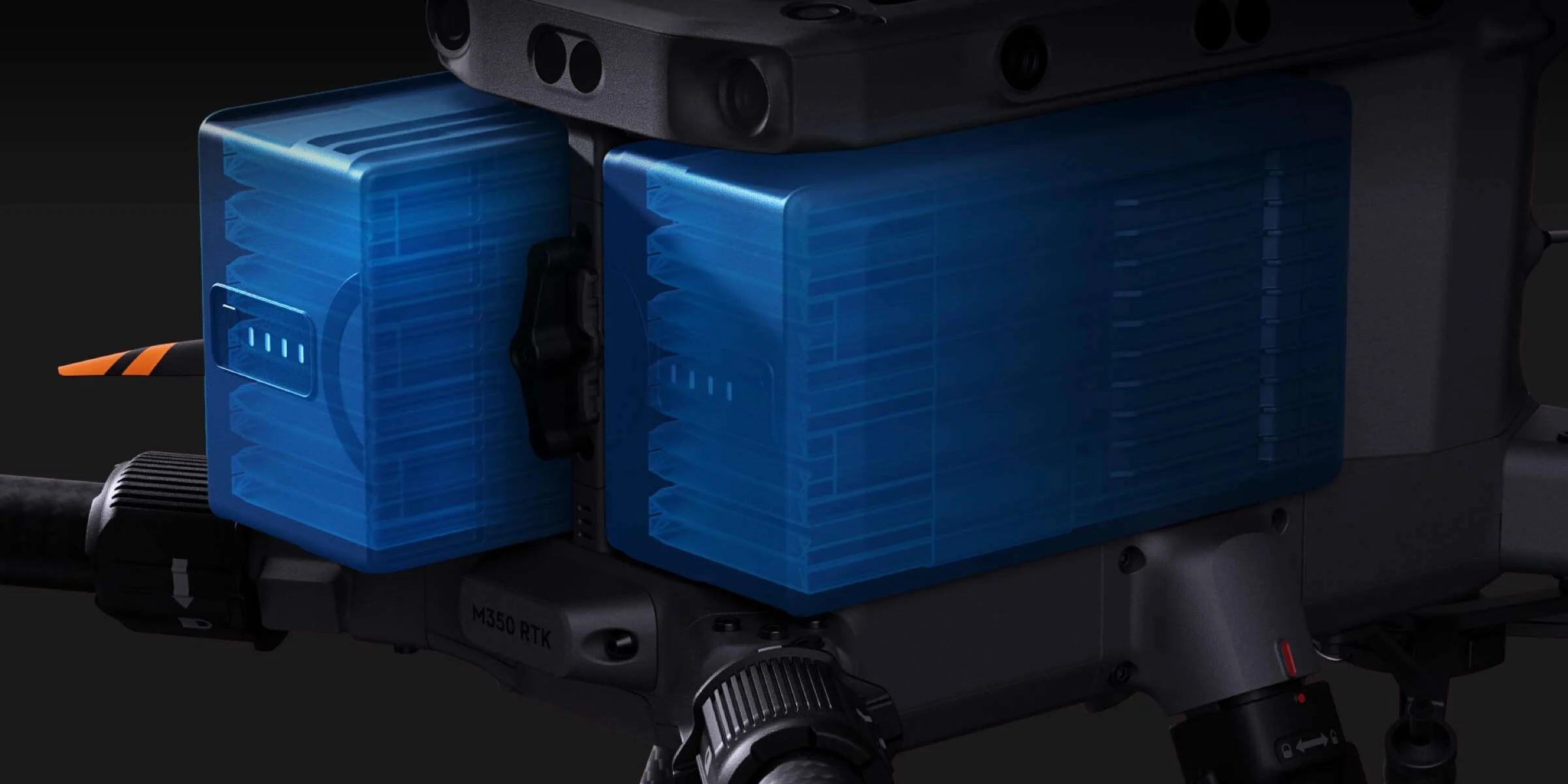

TB65 Dual-Battery System
The Matrice 350 RTK uses two TB65 Intelligent Flight Batteries and supports hot swapping, allowing crews to replace batteries and prepare for the next flight without powering down the aircraft.
DJI rates each TB65 battery for up to 400 charging cycles, supporting repeated use across enterprise operations.

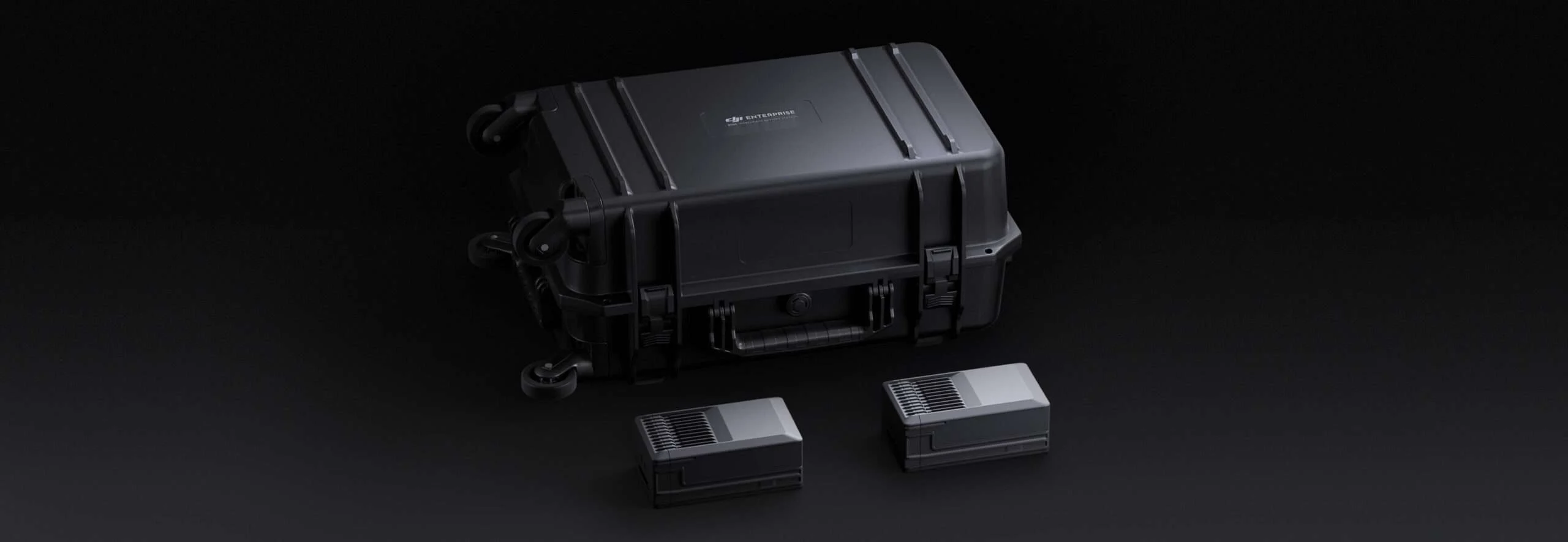

BS65 Intelligent Battery Station
The BS65 Intelligent Battery Station combines charging, storage, battery management, and transport in one system for Matrice 350 RTK operations.

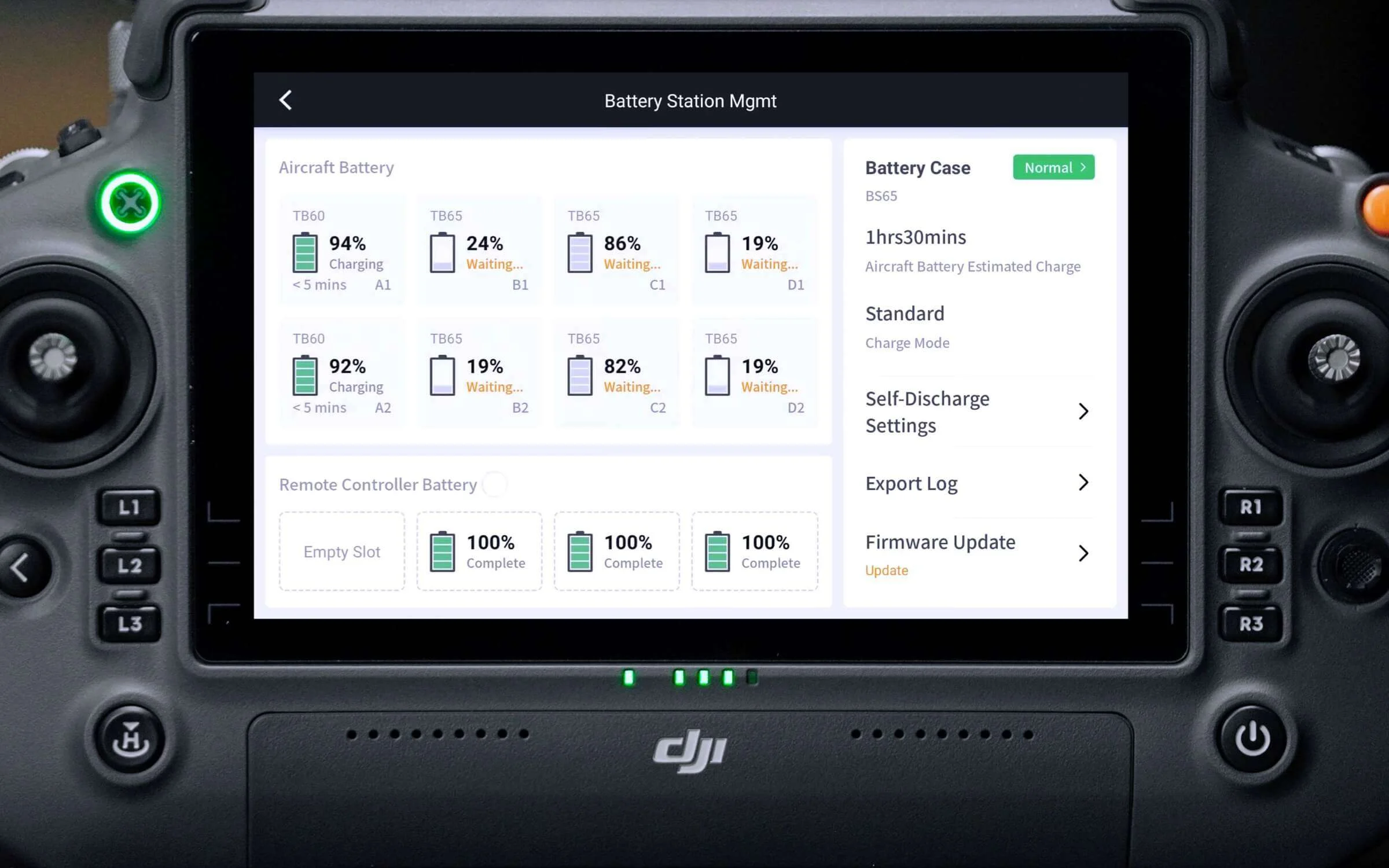

When connected to DJI RC Plus, DJI Pilot 2 displays battery status and health information and gives operators access to settings such as self-discharge timing, firmware updates, and battery logs.

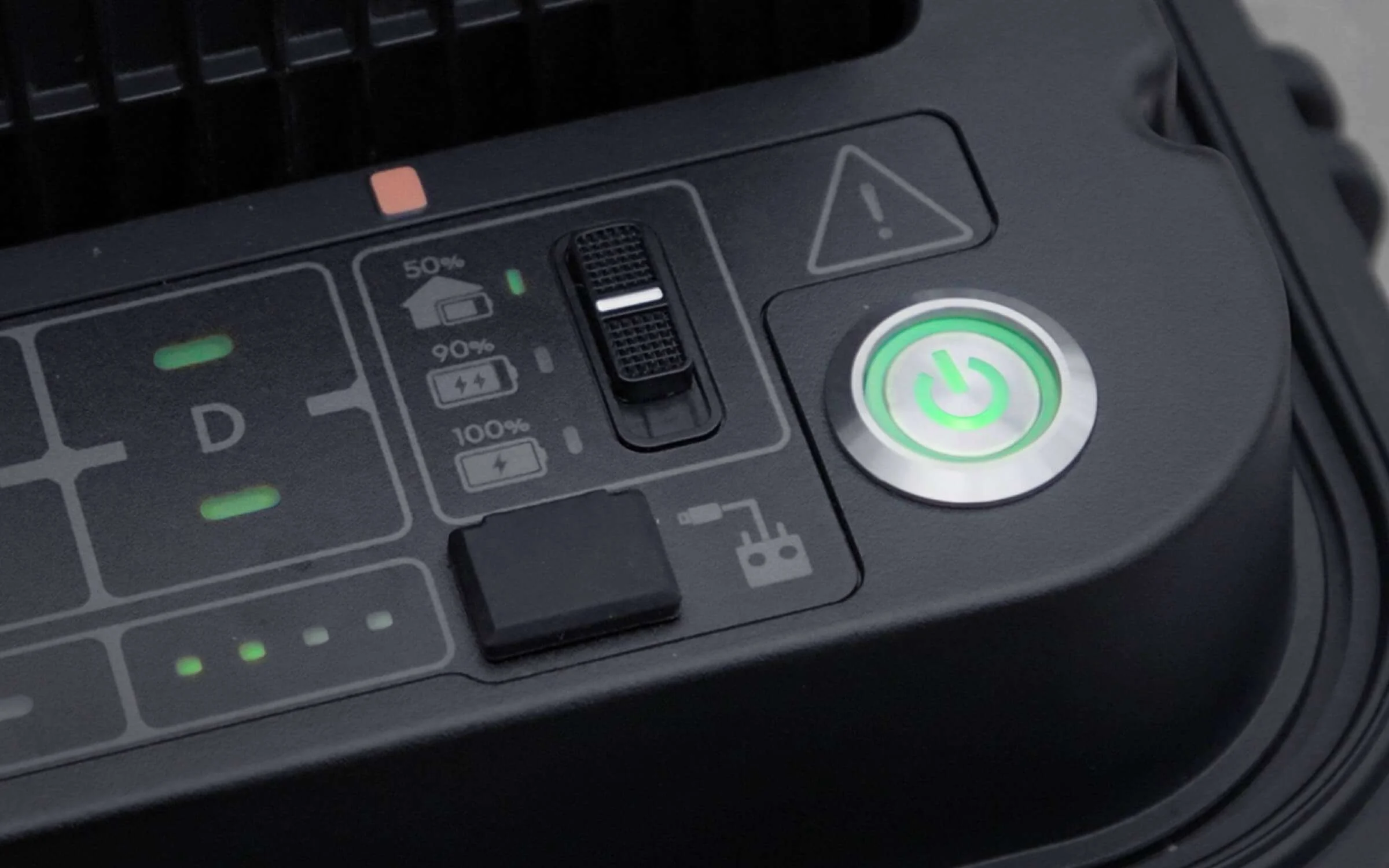

Storage and Ready-to-Fly Charging Modes
Storage Mode charges batteries to 50% for longer-term storage, while Ready-to-Fly Mode charges multiple battery sets to 90% so crews can prepare for upcoming flights while managing battery life.
The BS65 station also includes multidirectional wheels to make moving batteries and charging equipment between locations easier.

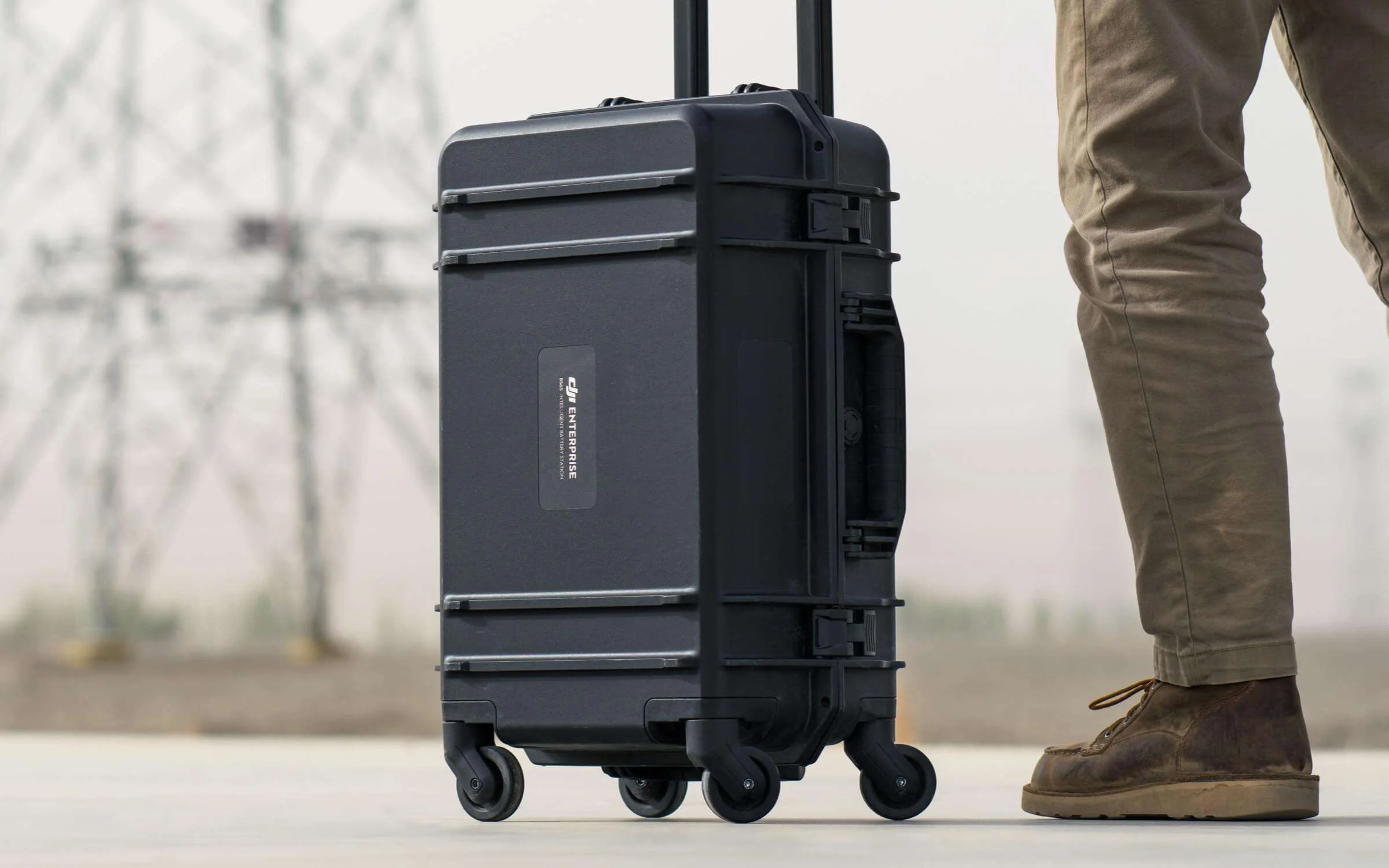

Easy Battery Station Transport
The BS65 Battery Station is equipped with 360-degree wheels to make it easier to move between work areas, vehicles, and charging locations during field operations.
DJI Matrice 350 RTK

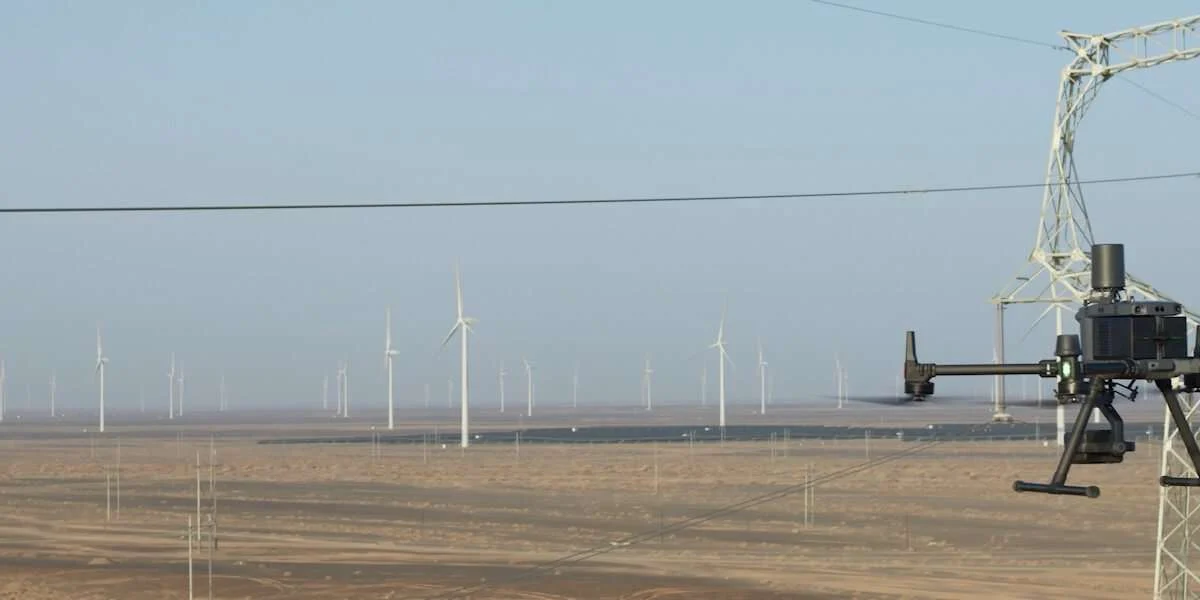

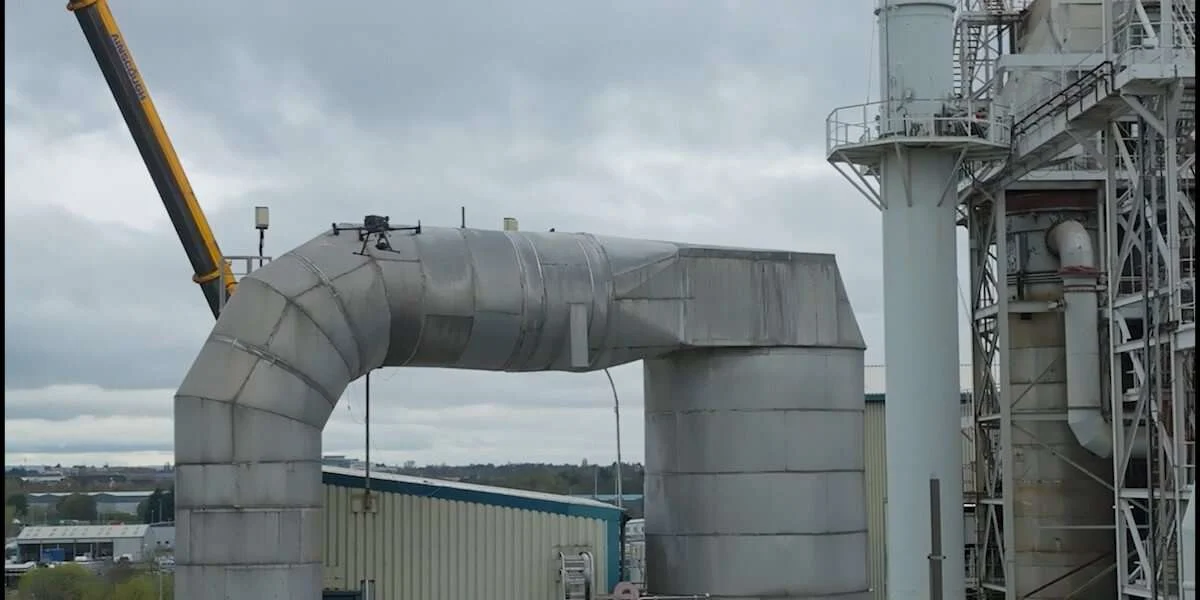

Flight Safety and Obstacle Sensing

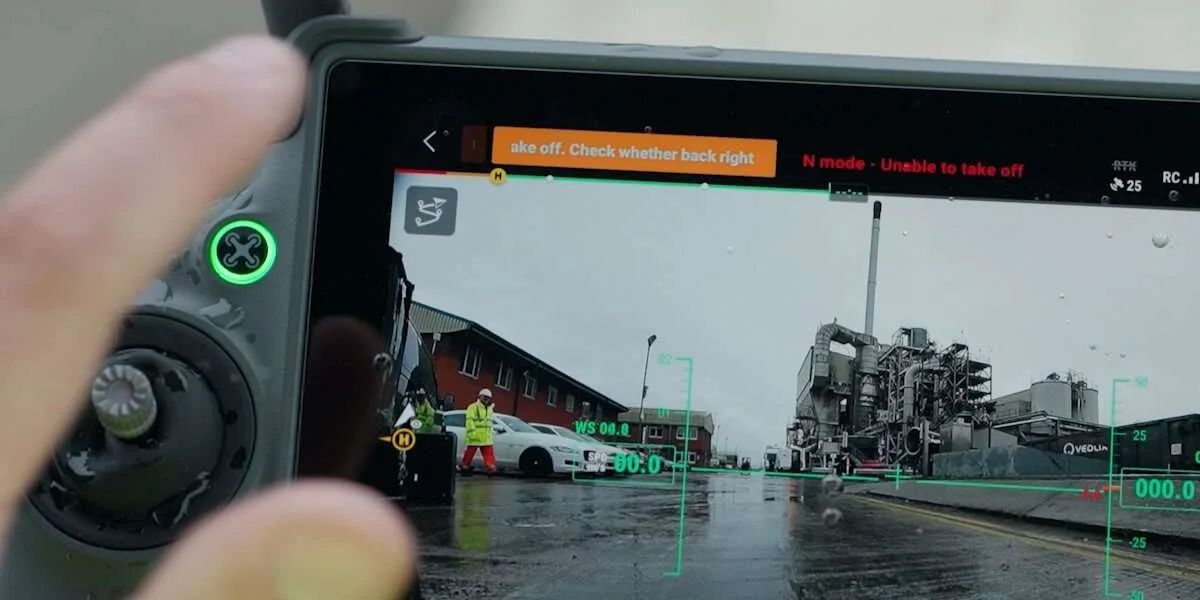

Night-Vision FPV Camera
The night-vision FPV camera helps operators maintain awareness of the aircraft’s surroundings and nearby obstacles in low-light conditions. It also works with DJI’s PinPoint function to support navigation during nighttime operations.
CSM Radar
With CSM Radar installed, the Matrice 350 RTK can detect obstacles above the aircraft and across a 360-degree horizontal area at distances up to 30 metres, adding another layer of awareness during flight.
Arm Lock Indicator
Arm lock detection alerts operators when an arm sleeve has not been secured correctly, adding another check before takeoff.
6-Directional Sensing & Positioning
A six-directional binocular vision system works with infrared sensing to support positioning, obstacle detection, and awareness around the aircraft.
Multi-Layered Redundancy Design
Redundancy across the aircraft and sensor systems adds another layer of resilience during complex or demanding operations.
DJI Matrice 350 RTK Payload Options
The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, and a single upward gimbal, along with an E-Port open interface.
With a maximum payload capacity of 2.7 kg, the aircraft can carry up to three compatible payloads simultaneously. This gives organisations flexibility to configure the Matrice 350 RTK for inspection, thermal imaging, LiDAR, surveying, mapping, public safety, and other specialised enterprise workflows.
Explore the compatible payload options below to compare the sensors and capabilities available for your operation.
Intelligent Operation
The Matrice 350 RTK supports advanced mission planning and data collection workflows for mapping, coordination, and repeat inspections.
High-Precision Mapping
The Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions, giving operators flexible options for different surveying and data-collection requirements.
Features including Terrain Follow and Smart Oblique can support efficient image collection across complex terrain and structures. Combined with DJI Terra, collected data can be processed into detailed 2D and 3D digital models for mapping and surveying workflows.
Air-to-Ground Coordination
The Matrice 350 RTK works with PinPoint, real-time mapping, and DJI FlightHub 2 to connect aircraft, ground teams, and cloud-based mission information.
After imagery is collected, FlightHub 2 can create a model of the operating area and share mission information with both aircraft and ground personnel.
Operators can also create and upload points, lines, and areas through the remote controller and FlightHub 2 while livestreaming the aircraft’s operational view, helping teams coordinate around the same mission information.
Automated Precision Inspection
The Matrice 350 RTK supports repeat inspection workflows through Live Mission Recording, which can generate and save flight routes for future automated missions.
When used with AI Spot-Check, operators can automatically frame previously identified subjects and make manual adjustments when needed. This helps improve consistency when capturing the same asset or inspection point across repeated missions.
DJI Matrice 350 RTK FAQs
Common questions about the DJI Matrice 350 RTK, answered by Terra Excel Drones.
What is the DJI Matrice 350 RTK used for?
The DJI Matrice 350 RTK is an enterprise and industrial drone designed for professional applications including inspection, mapping, surveying, public safety, infrastructure, thermal imaging, LiDAR, and other data-collection workflows. Its multi-payload design allows organisations to configure the aircraft for different missions and sensors.
How long can the DJI Matrice 350 RTK fly?
DJI lists a maximum flight time of up to 55 minutes without a payload under specified test conditions. Actual flight time varies with payload weight, accessories, flight conditions, and the operating environment.
How much payload can the DJI Matrice 350 RTK carry?
The Matrice 350 RTK supports a maximum payload capacity of 2.7 kg and can carry up to three compatible payloads simultaneously, depending on the configuration.
Does the DJI Matrice 350 RTK support RTK?
Yes. The Matrice 350 RTK includes RTK positioning for enterprise operations that require precise aircraft positioning, including surveying, mapping, inspection, and other data-collection workflows.
Can the DJI Matrice 4E create 3D models?
Yes. Smart 3D Capture allows operators to create an initial model using the remote controller and then generate detailed flight routes around buildings and other structures for measurement and 3D modelling.
Can the DJI Matrice 350 RTK be used for thermal inspections?
Yes. The Matrice 350 RTK can be configured with a compatible thermal imaging payload for applications such as infrastructure inspection, utilities, public safety, and other operations that require temperature data.
Can the DJI Matrice 350 RTK be used for surveying and mapping?
Yes. With a compatible mapping, photogrammetry, or LiDAR payload, the Matrice 350 RTK can support surveying, aerial mapping, 3D data collection, and other geospatial workflows.
What battery system does the DJI Matrice 350 RTK use?
The Matrice 350 RTK uses two TB65 Intelligent Flight Batteries and supports battery hot swapping. The BS65 Intelligent Battery Station provides charging, storage, battery management, and transport for field operations.
Can the DJI Matrice 350 RTK operate in low-light conditions?
The Matrice 350 RTK includes a night-vision FPV camera to help operators maintain awareness of the aircraft’s surroundings in low-light conditions. Compatible payloads can add additional imaging capabilities depending on the mission.
Is the DJI Matrice 350 RTK weather resistant?
The Matrice 350 RTK has an IP55 protection rating and an operating temperature range of -20°C to 50°C, supporting enterprise operations across a wide range of field and weather conditions.
What payloads are compatible with the DJI Matrice 350 RTK?
The Matrice 350 RTK supports compatible DJI and third-party payloads for applications including thermal inspection, LiDAR, surveying, mapping, public safety, and visual inspection. Terra Excel Drones can help determine which payload configuration fits the data and workflow requirements of your operation.
Where can I buy the DJI Matrice 350 RTK in Canada?
Terra Excel Drones supplies DJI Matrice 350 RTK enterprise drone solutions in Alberta and across Canada and can help organisations compare compatible payloads, batteries, accessories, and aircraft configurations.
Buy the DJI Matrice 350 RTK in Canada
Choosing the right Matrice 350 RTK configuration depends on the work you need the aircraft to perform and the data you need to collect.
Terra Excel Drones can help organisations in Alberta and across Canada compare compatible payloads, batteries, accessories, and workflow requirements to build a Matrice 350 RTK system suited to their operation.
