Inspire 2

Power Beyond Imagination

The Inspire 1 was a revelation. The first filmmaking drone in the world to integrate an HD video transmission system, 360° rotating gimbal and a 4K camera,as well as the simplicity of app control. The launches of the Zenmuse X5 and X5R cameras further cemented the Inspire as a critical tool for filmmakers around the globe.

The Inspire 2 takes everything that was good about the Inspire 1 and improves it.



The image processing system

CineCore2.0 has been upgraded to CineCore2.1,recording video at up to 6K in CinemaDNG/RAW and 5.2K in Apple ProRes when used with Zenmuse X7 camera. It goes from 0 to 50 mph (80 kph) in just 5 seconds andhits a maximum speed of 58 mph (94 kph) and has a max descent speed of 9m/s for unheard of speed and agility in an aircraft this size. A dual battery systemprolongs the flight time to a maximum of 27 minutes (with an X4S), while self-heating technology allows it to fly even in low temperatures.

FlightAutonomy has been revised and developed specifically for the Inspire 2, providing two directions of obstacle avoidance and sensor redundancy.

Increased intelligence adds multiple intelligent flight modes, including Spotlight Pro, giving even single pilots the ability to create complex, dramatic shots.An upgraded video transmission system is now capable of dual signal frequency and dual channel, streaming video from an onboard FPVcamera and the main camera simultaneously, for better pilot and camera operator collaboration.

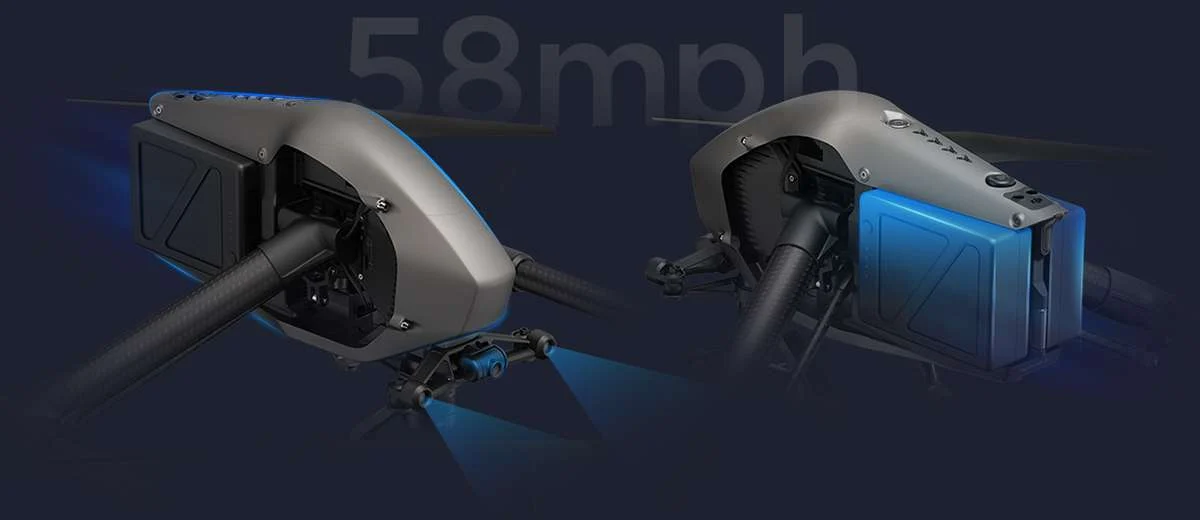

Aircraft

Structure: Magnesium aluminum composite shell and transforming design, carbon fiber arms

Configuration: vision sensing, 2-axis FPV camera, range of supported cameras

Propulsion: 58 mph (94kph) max speed, 2kg of thrust per rotor, 15-in props, 23-min flight time with X7, 27-min flight time with X4S.

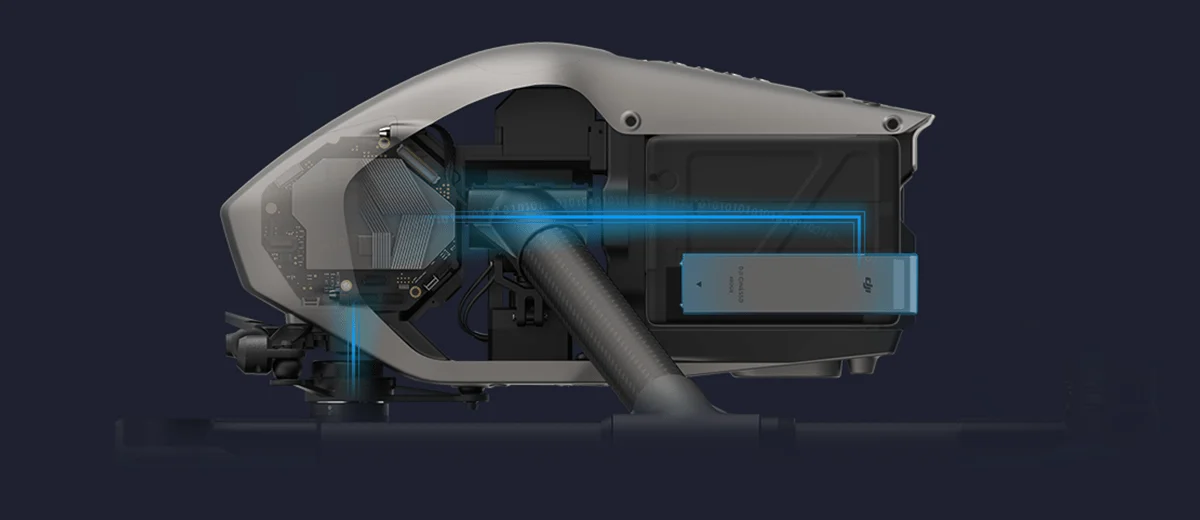

Battery: Dual battery, self-heating, battery redundancy, 98Wh

*Hovering at sea level with no wind*

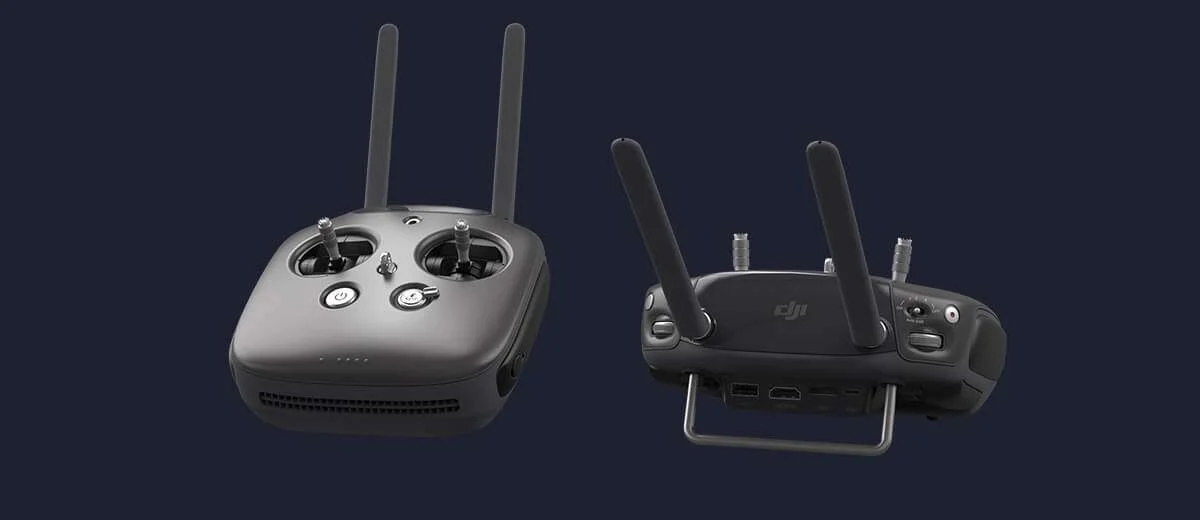

Remote Controller

Lightbridge technology: Signal frequency switching between 2.4 GhHz.

Primary-secondary mode: One prinary and one secondary supported. Multilink required when usinmultiple secondary controllers.

Controllable range: 4.3 mi (7km)*

Ports: Extension port, HDMI port, USB port

*Unobstructed, free of interference, when FCC compliant.*

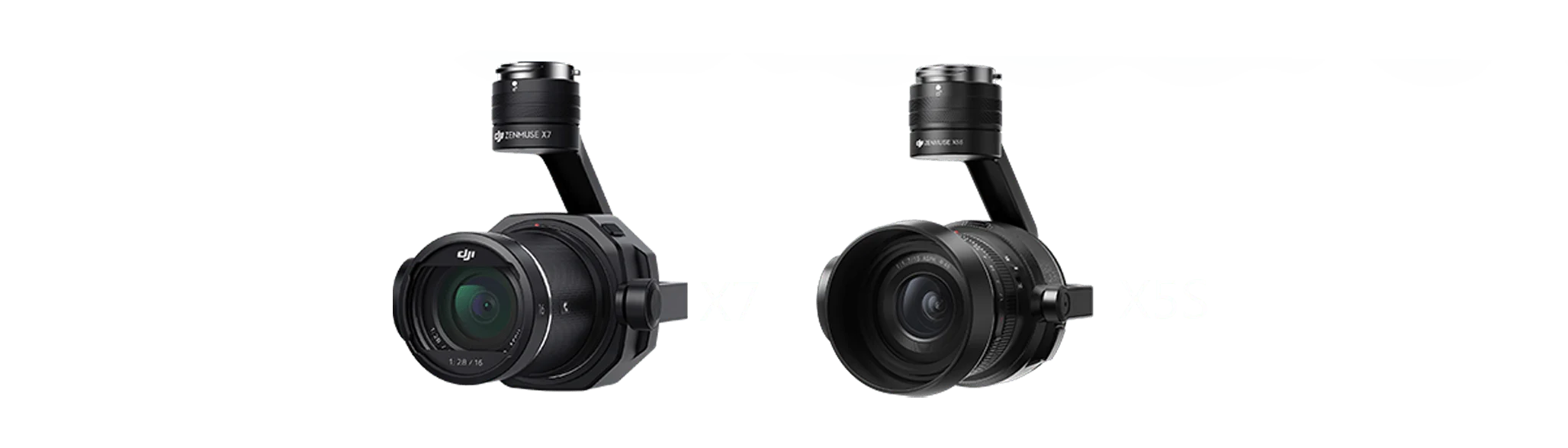

CineCore 2.1
PROFESSIONAL IMAGE QUALITY

6K 30fps
CinemaDNG

3DNR

5.2K 30FPS
Apple ProRes

3DLUT

H.265 / H.264
100Mbps

DJI Cinema Color System

20fps
Continuous Burst

El Mode

PIV

NVMe SSD PCIe 3.0

Oversampling Video

FAT32/exFAT

Efficient Workflow

The Inspire 2 creative workflow has been completely optimized and is now capable of recording videoin CinemaDNG and Apple ProRes, and other common formats for post-production in filmmaking. Also supported are FAT32/exFAT* file systems,which allow fast copying of files direct from the CINESSD without additional software.
*Coming soon*

Sense and Avoid

Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34mph (54kph)at a controllable attitude angle of 25°. Upward facing infrared sensors scan obstacles 16ft (5m) above, adding protection when flying in enclosed spaces.Obstacle sensing systems are active during normal flight, RTH and all Intelligent Flight Modes.These sensors are core components of the DJI FlightAutonomysystem, which brings the below intelligent features to the Inspire 2:

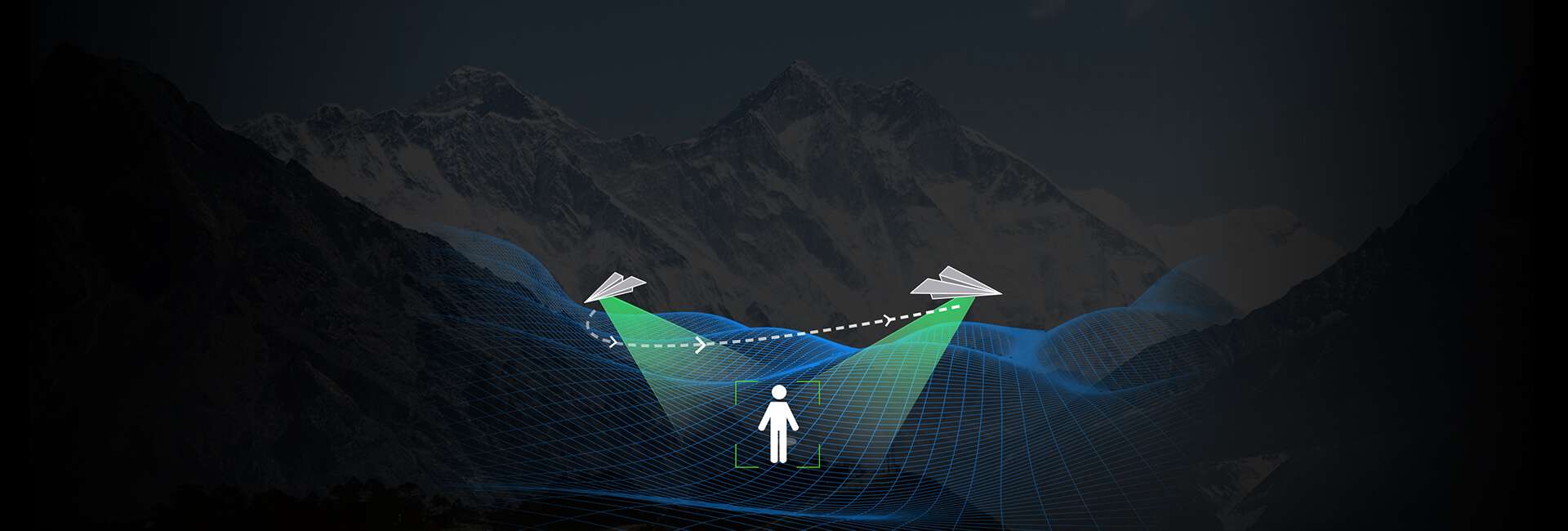

Spotlight Pro

Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced visual tracking algorithms to lock onto a subject during flight,regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits,the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.

It has two shooting modes, Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position.When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments.Spotlight Pro is available in Intelligent Flight Modes TapFly, Waypoint, and Point of Interest.

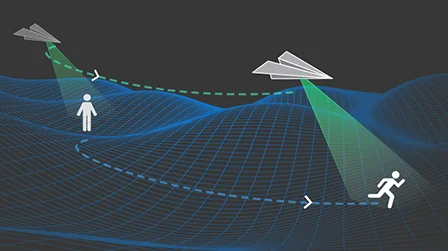

Intelligent Flight Modes

In addition to Spotlight Pro, a range of other intelligent flight and shooting modes are available. Obstacle avoidance is optimized when using Point of Interest*and Waypointmodes, making complex shots simple and repeatable. Also available are QuickSpin, TapFly and ActiveTrack, to simplify challenging shots.

TapFly
Onboard FPV camera separates flight view from main camera view, effectively giving the Inspire 2 a dedicated TapFly camera. To set a flight route, tap a point onscreen in the FPV view, and the Inspire 2 will follow it automatically, leaving the pilot to focus on the gimbal.

ActiveTrack
The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.

Increased Reliability

A dual redundancy of key modules, such as the IMU and barometer, further enhances reliability. Intelligent flight control monitors the redundancy system, providing accurate flight data. Inspire 2 senses and avoids obstacles, minimizing collision risks. If one battery fails, the other can continue flight long enough to land safely. PWM signals drive the Inspire 2 propulsion system with serial port signal redundancy so that if PWM signals fail, serial port transmission will continue. Combined with key sensors and a dual-battery design, this propulsion system has been tested for thousands of hours to ensure reliability.

Video Transmission System

The latest update to DJI Lightbridge technology has an effective transmissiondistance of up to 4.3mi (7km) and is capable of delivering both 1080p/720pvideo as well as the FPV view to pilot and camera operator.

Users can alsoswitch between 2.4GHz and 5.8GHz control frequencies to cut throughnoise for greater signal stability.

Primary and Secondary Controllers:
A new wireless HD image transmission technology sends video information from the primary controller to the secondary controller and the two controllers can be up to 100m apart without loss of image quality.
*Unobstructed, free of interference, FCC compliant.
**5.8GHz transmission is not available in some regions due to local regulations.

POWERFUL FLIGHT PERFORMANCE

A new propulsion system optimized for power creates a new level of flight performance. The Inspire 2 flies at up to 58mph (94kph) descends at 9m/s andascends at 6m/s. It can accelerate from 0 to 50mph (80kph) in just 5 seconds and flies at a max attitude angle of 40°. The two controller sticks are tuned for moresensitivity, making delicate maneuvers easier.

More power also allows the Inspire 2 to fly in more extreme conditions, including over 2500-5000m above sea level (using optional dedicated propellers),and in temperatures as low as -4°F (-20°C) using self-heating Intelligent Flight Batteries.

Smart Return To Home

Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return to Home is enabled, it is able to fly home along its original route, and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.

Optional Accessories To Enhance Performance

12000W Multifunctional Inverter Generator with new EFI technology and 15% fuel saving[3]. The charging station produces 1500W AC output, sufficient to power the remote controller, water pump, reloader, lights, and other components. The 30000mAh Intelligent Flight Battery with its standard air-cooled heat sink can cool down rapidly.
